Safety System Application Guide Chapter 6

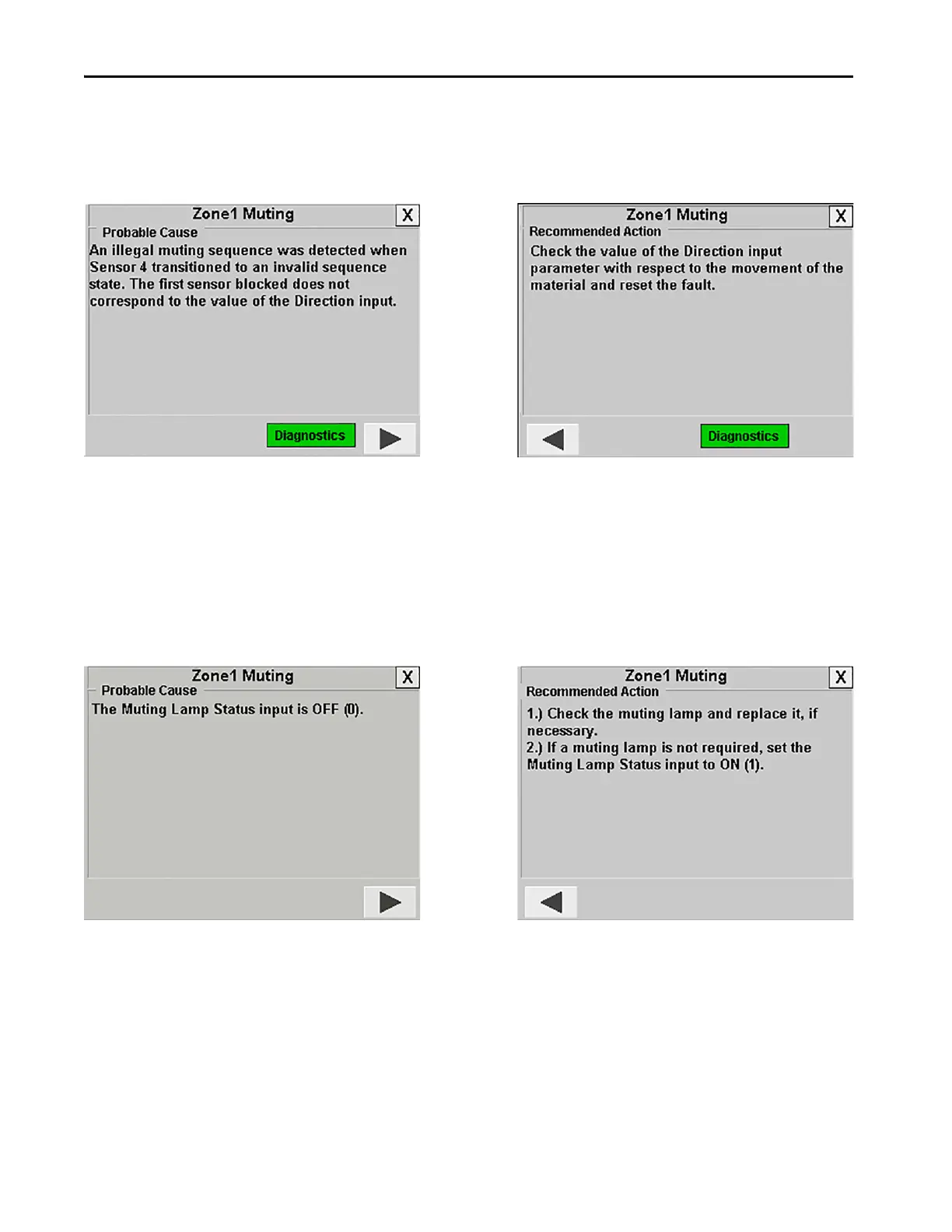

Safety Instruction Faceplate – Fault Views
The Probable Cause view explains the likely cause of the fault. Click the arrow to move to the Recommended Actions view.
The Recommended Actions view shows a possible solution for the problem. Click the arrow to return to the Probable
Cause view.
Safety Instruction Faceplate – Diagnostic Views
The Probable Cause view explains the diagnostic. Click the arrow to move to the Recommended Actions view.
The Recommended Actions view provides steps for clearing the
diagnostic. Click the arrow to return to the Probable
Cause view.
Recommended Action ViewProbable Cause View
Recommended Action ViewProbable Cause View
