Chapter 6 Safety System Application Guide
Error Content, Probable Cause, and Recommended Actions

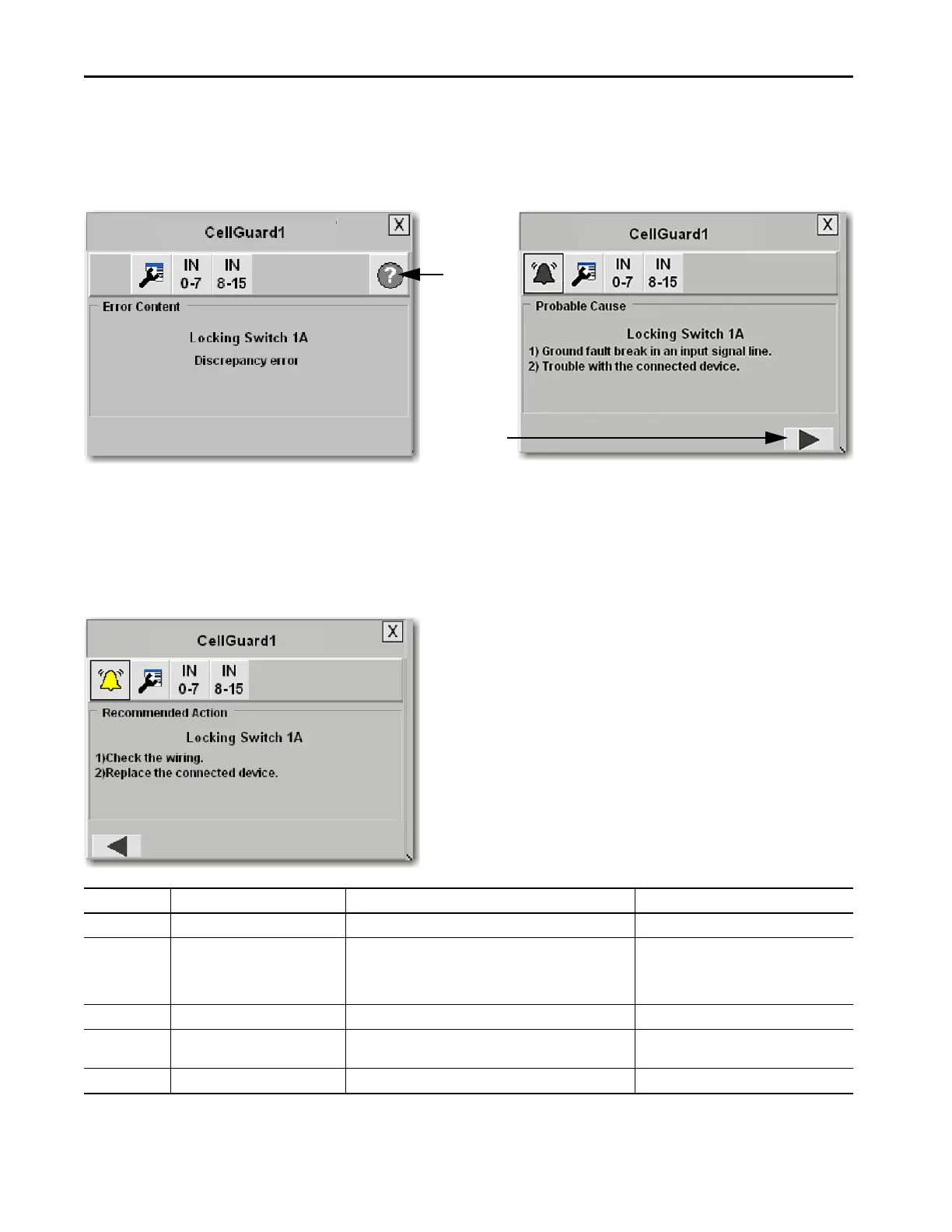

When you press the Alarm button on the toolbar, the Error Content view is displayed, indicating the specific error being
reported by the module.
To access the probable cause of the reported error, press the Help button on the toolbar. For further diagnostic help, press
th
e black arrow key at the bottom of the view to access Recommended Action information.
This diagnostic information is triggered by the reported module error code. The input and output error code
in
formation provided is in accordance with the Guard I/O and SmartGuard I/O information represented in the tables
on the following page.
Help Button
Black Arrow Key
Code (hex) Error Content Probable Cause Recommended Action
01 Configuration invalid The configuration is invalid. Configure the module correctly.
02 External test signal error 1. The power source (positive side) is in contact with the input
signal line.
2. Short-circuit between input signal lines.
3. Trouble with the connected device.
1. Check the wiring.
2. Replace the connected device.
03 Internal input error Trouble with the internal circuit. Replace the module.
04 Discrepancy error 1. Ground fault or break in an input signal line.
2. Trouble with the connected device.
1. Check the wiring.
2. Replace the connected device.
05 Error in the other dual channel input Dual channels are set and an error occurred in the other channel. Remove the error in the other channel.
To Next Page
