FactoryTalk® View ME Software Integration
Introduction
The Safety Accelerator Toolkit contains faceplates that let you create displays in FactoryTalk View Machine Edition
software. Use safety I/O module faceplates for displays that let you control and monitor your Guard I/O™ modules or
SmartGuard™ 600 I/O. Use safety instruction faceplates for displays that monitor the status and diagnostic information
of GuardLogix® controller safety application instructions.
This example shows a pre-configured Guard I/O Goto display button that can launch the on-top display or faceplate for
the particular Guard I/O module. The faceplate includes status and diagnostic views controlled by its own toolbar
buttons.

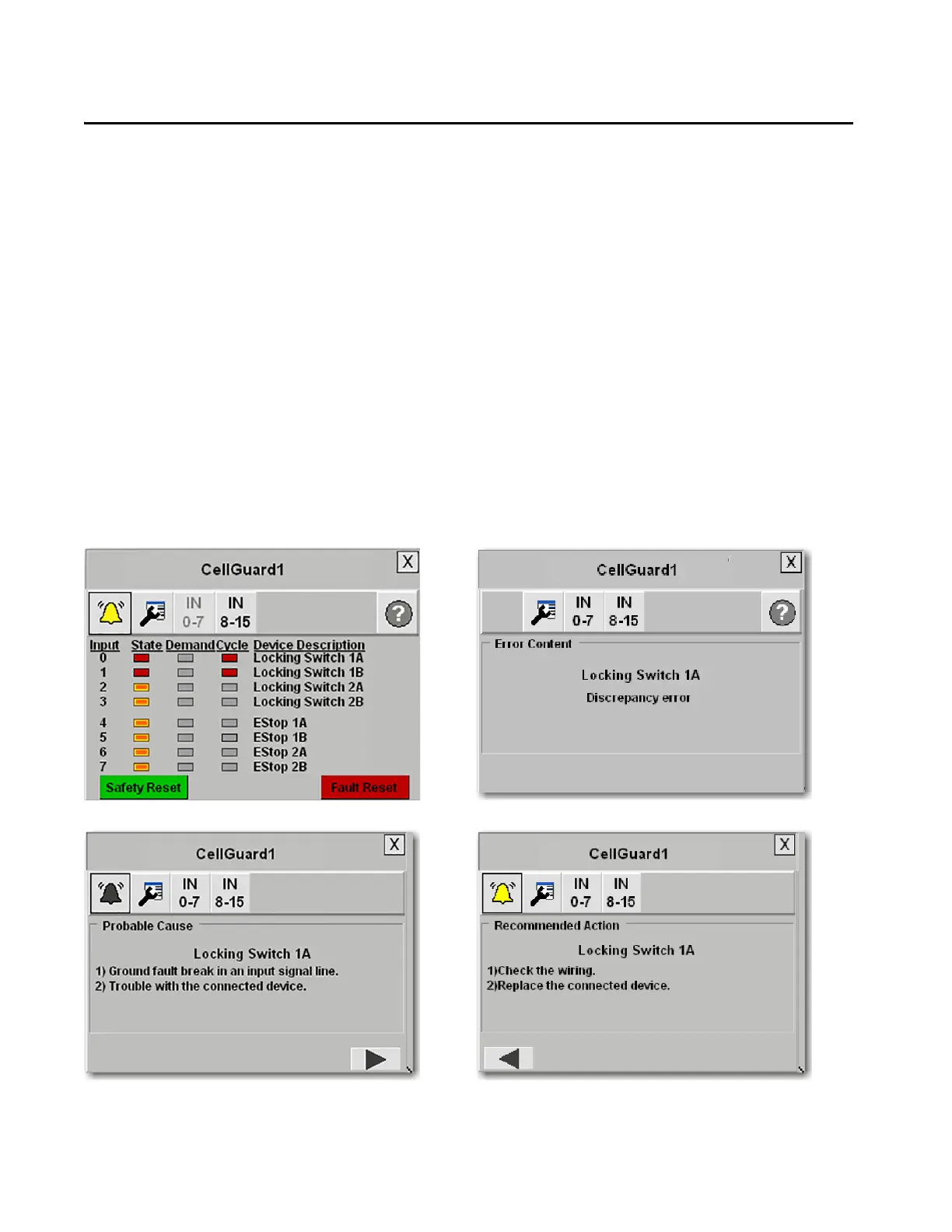

Figure 4 - Guard I/O Module Faceplate Views
