Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 117
SmartGuard™ 600 Controllers Logic Integration Chapter 4
Select Zone Inputs

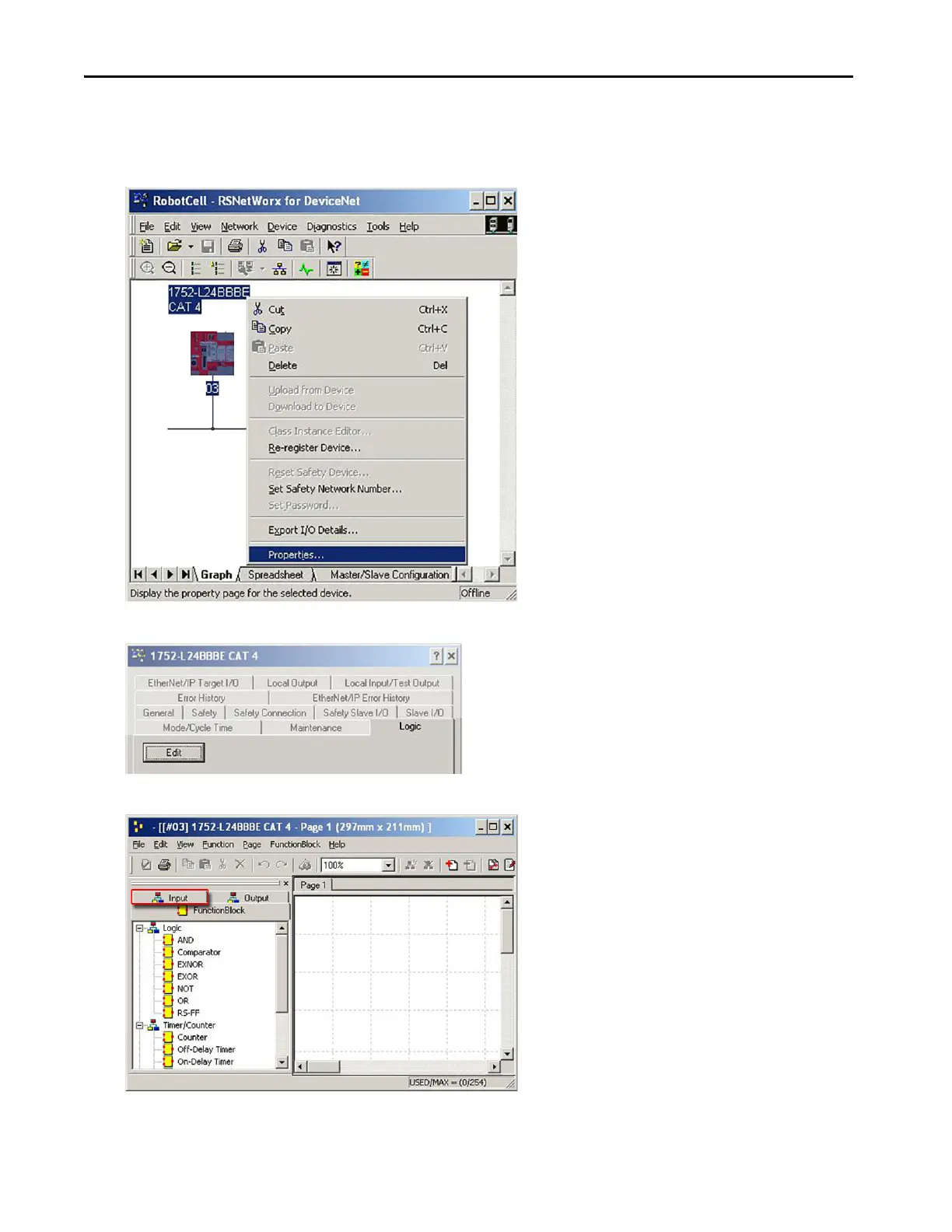

1. To access the Logic Editor, right-click the SmartGuard controller and choose Properties.
2. In the SmartGuard Properties dialog box, select the Logic tab and click Edit to open the Logic Editor.
3. Select the Input tab within the Logic Editor to access the inputs.
