Chapter 3 GuardLogix® Controllers Logic Integration
Faceplate Logic for Safety Instruction Faceplates
Import User-defined Data Type for Safety Instruction Faceplates
Follow these steps to import the required user-defined data type.

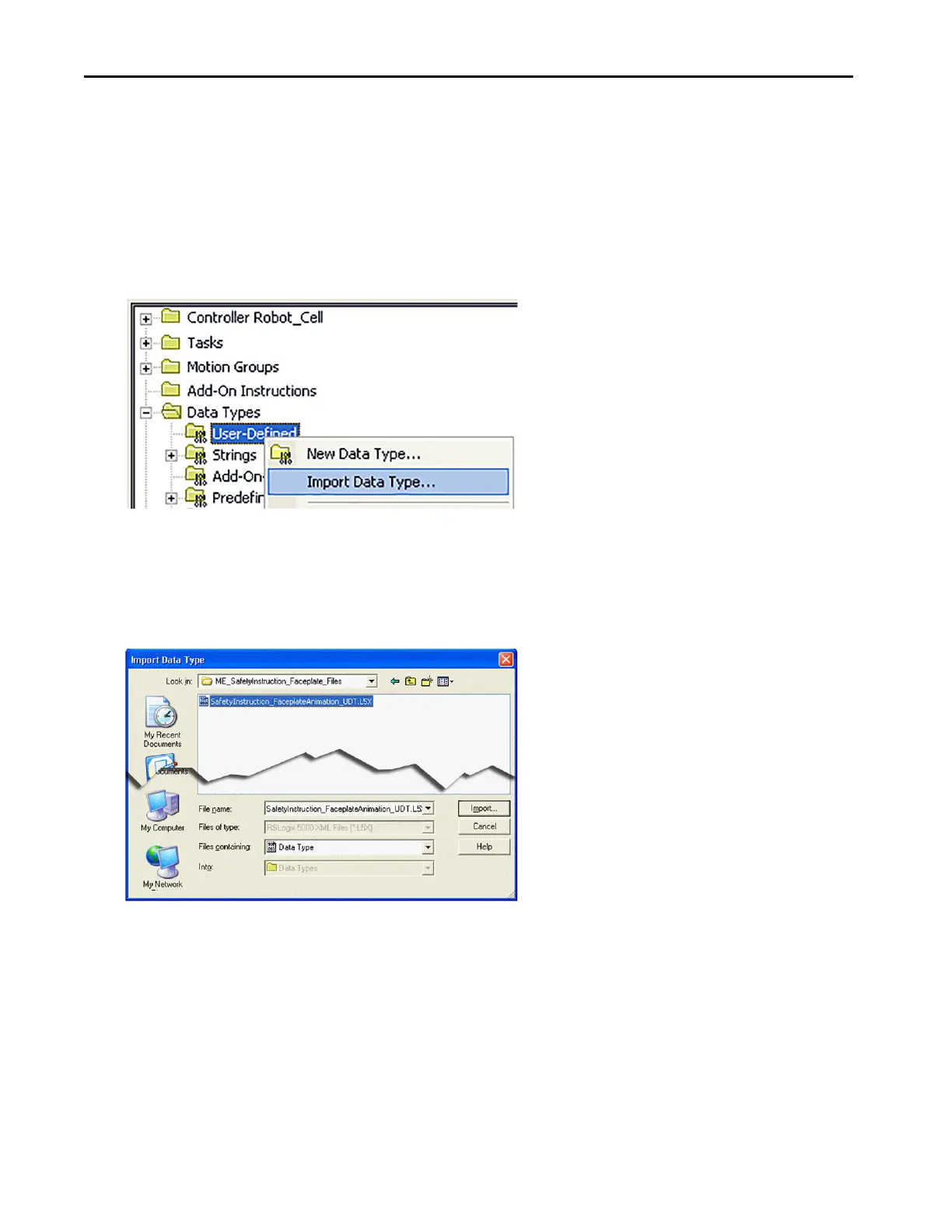

1. Under Data Types in RSLogix 5000 software, right-click User-Defined and choose Import Data Type.
2. Browse to the Safety Instruction Faceplate files in the toolkit and open the
ME_Safety_Faceplate_Files
folder.
If the toolkit has been loaded onto your personal computer, the hard drive path is
C:\Program Files\RA_Simplification\SafetyGuardLog
ix\Files\Safety Instruction Faceplate Files
\ME_SafetyInstruction_Faceplate_Files
3. Select the SafetyInstruction_FaceplateAnimation_UDT file and click Import.
