Chapter 3 GuardLogix® Controllers Logic Integration
Create a GuardIO_Analog_AOI Instance in a Standard Program Routine
You must create a Standard GuardIO_Analog_AOI instance for each Guard I/O module in your application.
1. Open the intended standard program routine and add a rung.

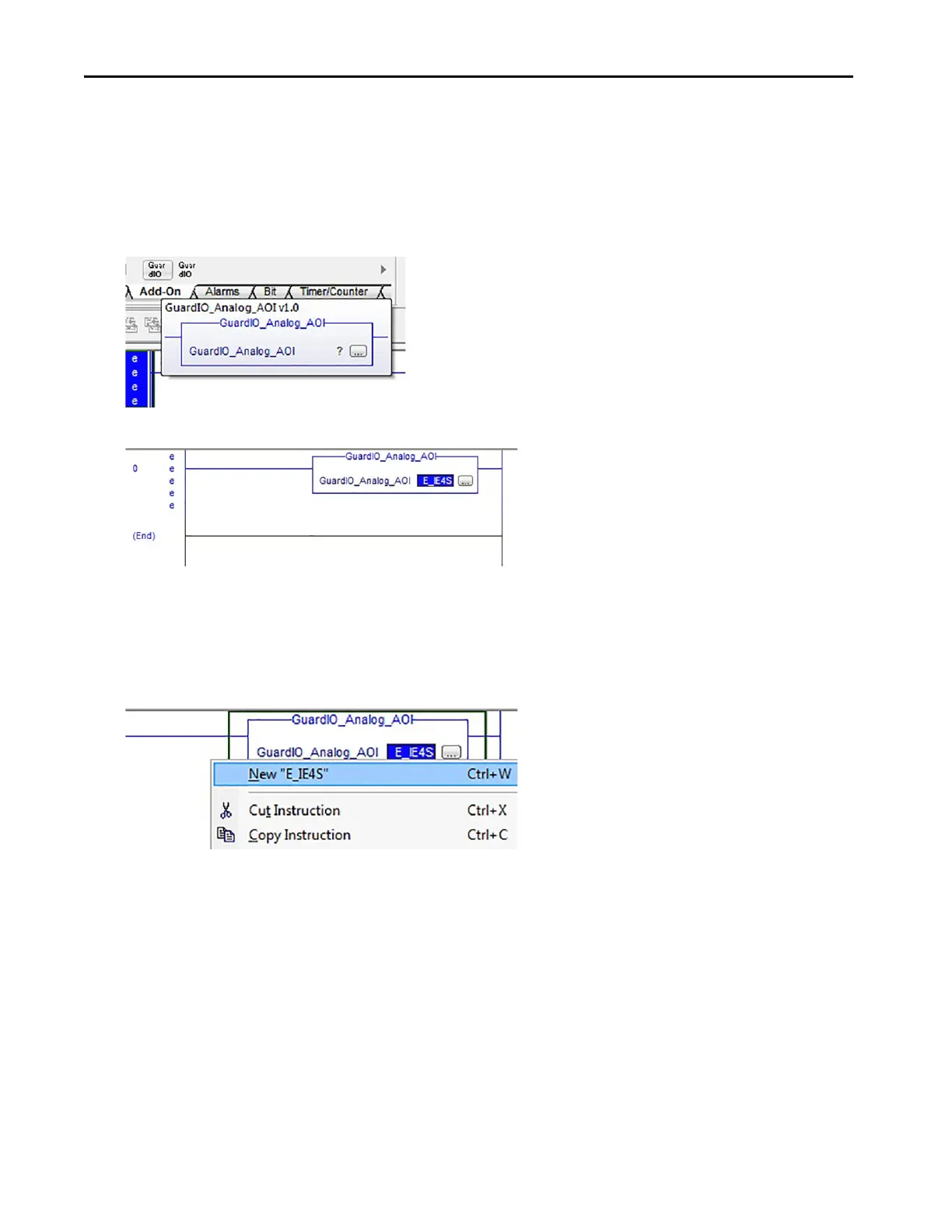

2. Select the GuardIO_Analog_AOI from the Add-On Instructions tab.
3. Double-click the GuardIO_Analog_AOI tag name field.
4. Type the ModuleName of the first Analog Guard I/O module from your Safety Module Configuration
worksheet.
This example shows an Add-On Instruction named E_IE4S that is associated with a Analog Guard I/O module of
the same name.
5. Right-click in the tag name field and choose New tag name, where tag name is the name you typed.
