Chapter 3 GuardLogix® Controllers Logic Integration

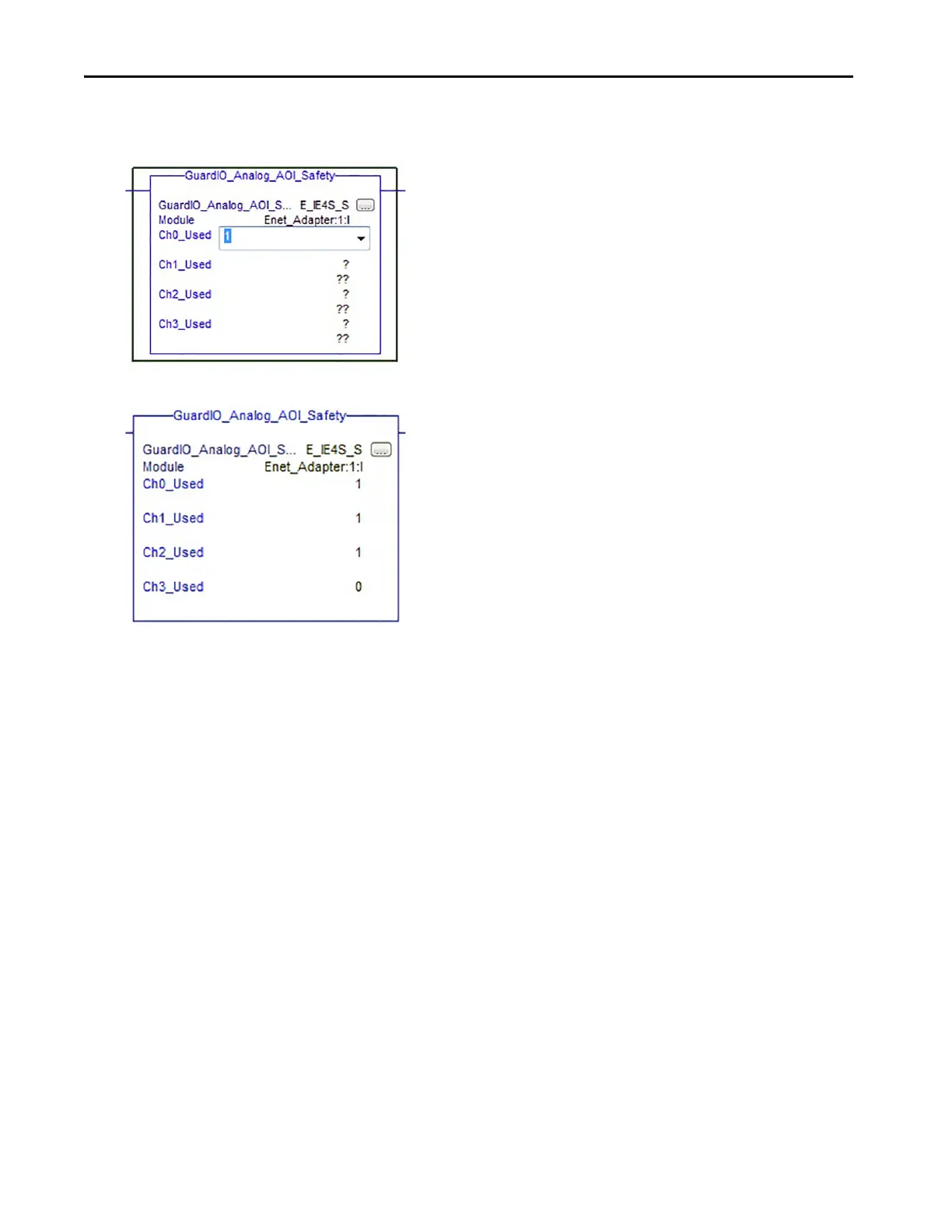

9. Double click each of the Chx_User tags and enter value of 1 if the channel on the module is being used or a value
of 0 if the channel is not used.
The channel assignment in this example show channels 0, 1, and 2 being used and channel 3 not used.
