GuardLogix® Controllers Logic Integration Chapter 3

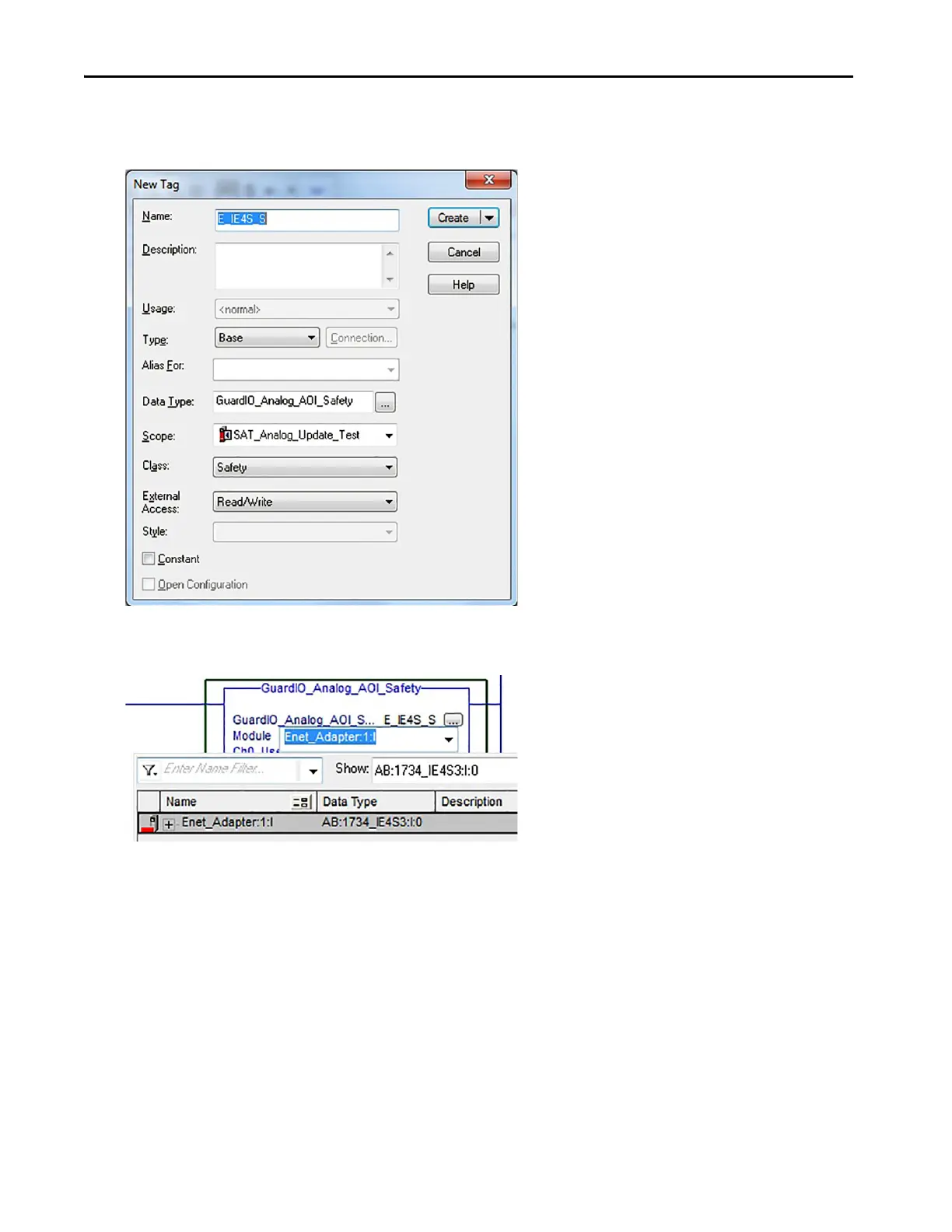

6. In the New Tag dialog box, verify that your settings match what is shown below.
Change where needed to match.
7. Click OK.
8. As
sign the Safety Analog Input Module’s input tag to the Safety Analog GuardIO_AOI Module field.
The Module assignment in this example is Enet_Adapter:1:I which is the input tag of the IE4S module in slot 1 of
th
e Point I/O chassis.
