Chapter 3 GuardLogix® Controllers Logic Integration

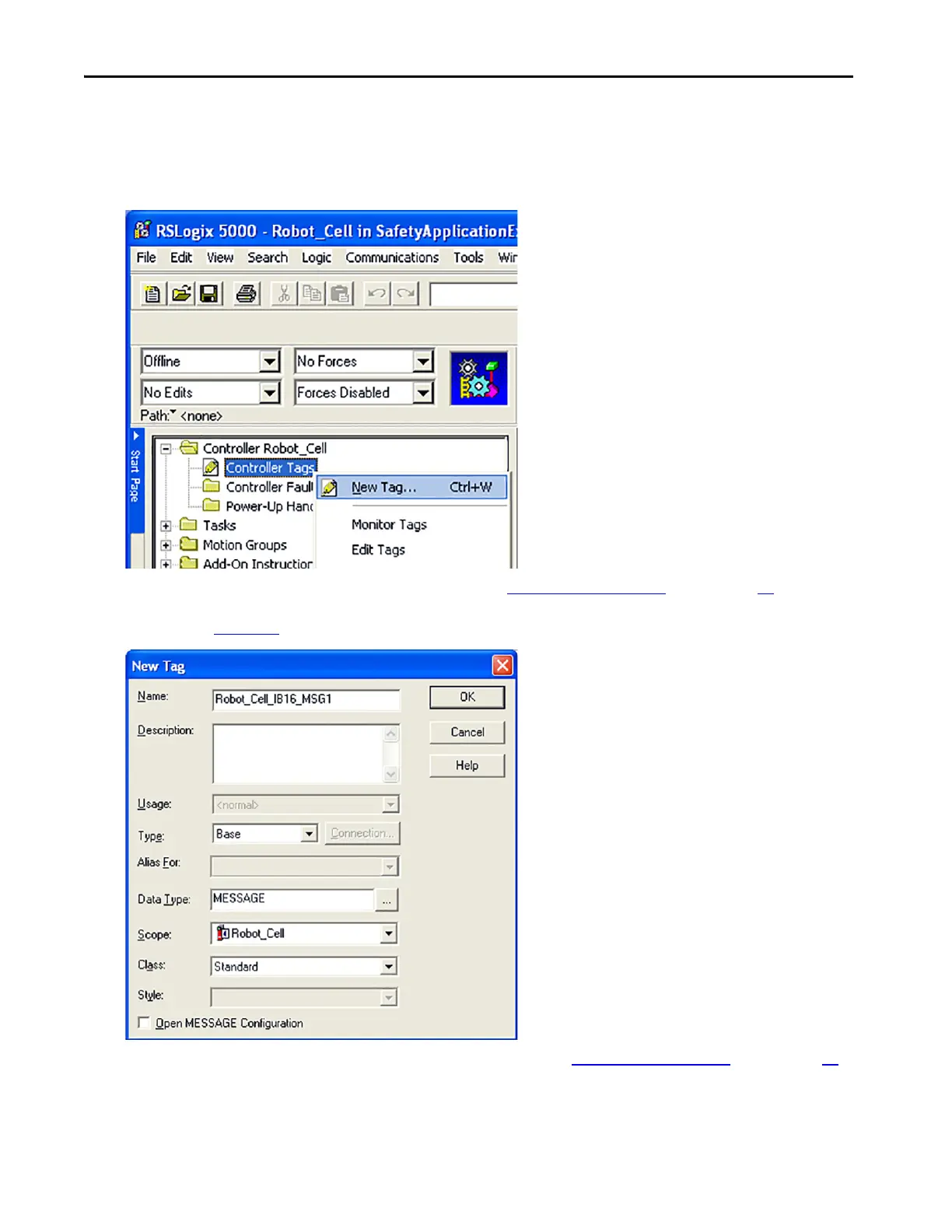

Follow these steps to create a controller tag.
1. Expand your controller folder.
2. Right-click Controller Tags and choose New Tag.
3. In the New Tag dialog box, type the tag name, based on the Guard I/O Module Tags
table on page 71 and enter
the ModuleName for the associated Guard I/O module found on the Safety Zone Configuration worksheet you
completed in Chapter
2.
4. Choose the appropriate data type and scope for each tag based on the Guard I/O Module Tags
table on page 71.
The Class for these tags must be Standard.
