114 Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016
Chapter 4 SmartGuard™ 600 Controllers Logic Integration

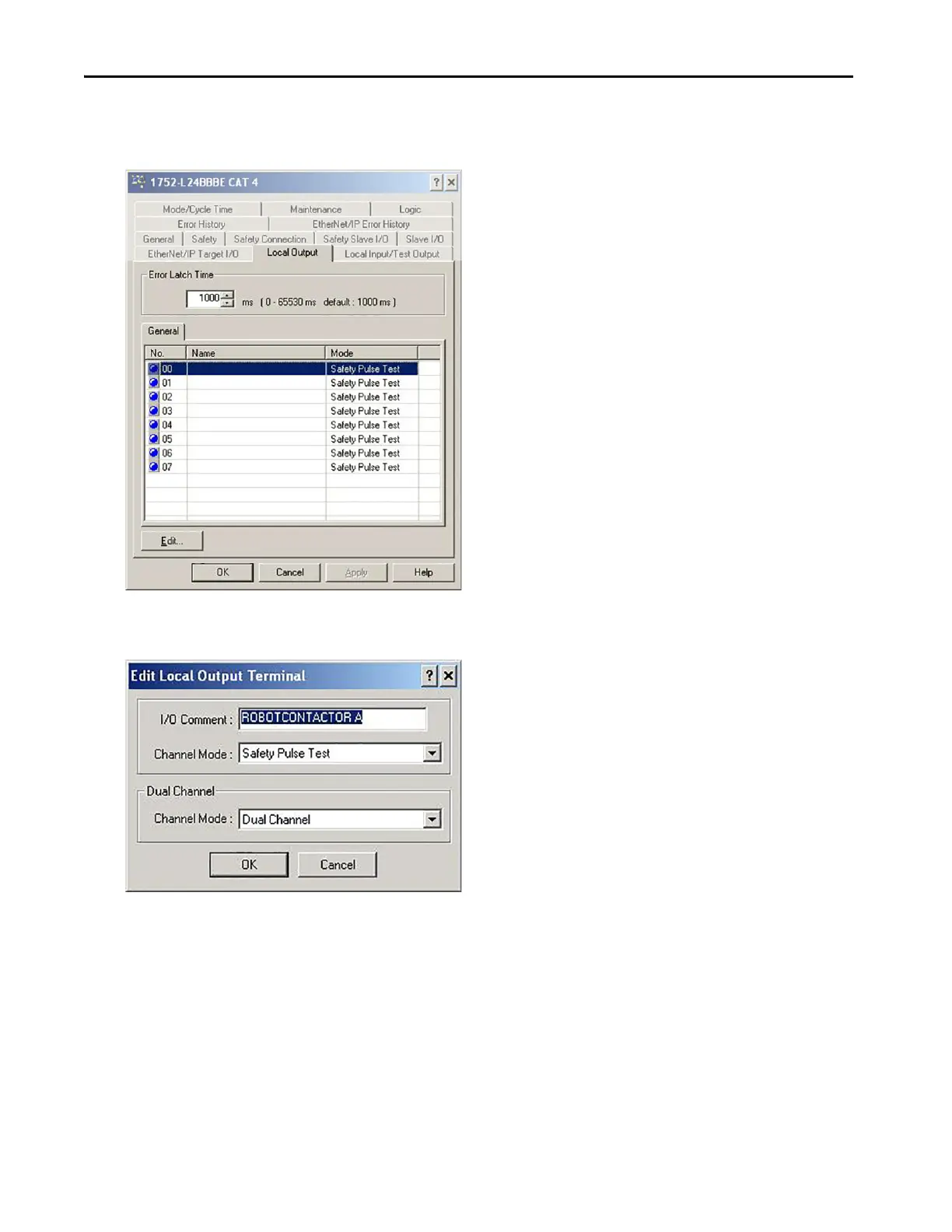

2. On the Properties dialog box, choose the Local Output tab
3. Select each of the outputs (00…07) and click Edit to access the individual local input configuration dialog boxes.
4. Type the output name into the I/O Comment field.
For this example, we typed ROBOTCONTACTOR A.
