SmartGuard™ 600 Controllers Logic Integration Chapter 4

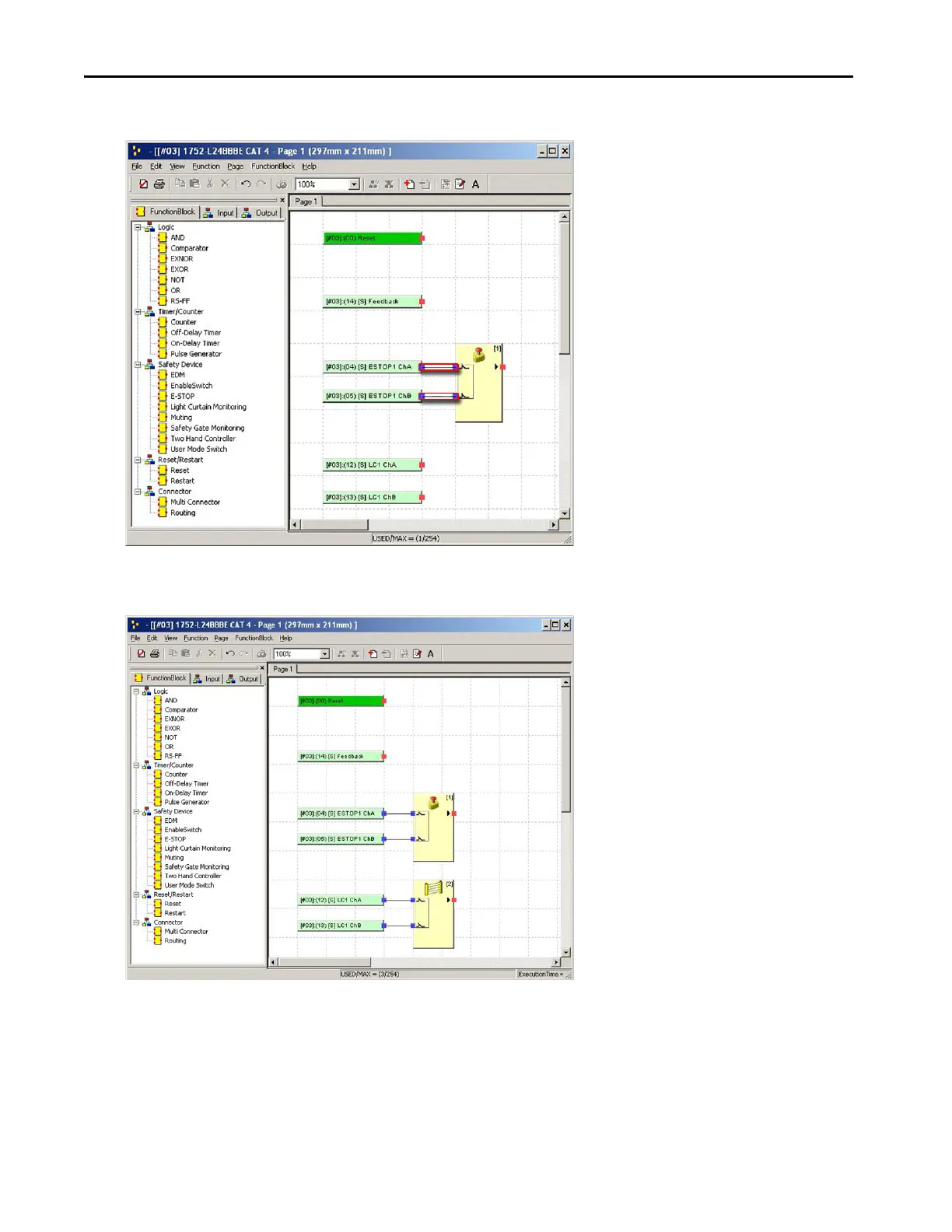

3. Click, drag, and drop safety input channels onto the associated Safety Device function block.
4. Repeat steps 1 through 3 for all safety inputs.
For this example, the Light Curtain Monitoring function block was also added and connected to the safety inputs.
