Chapter 4 SmartGuard™ 600 Controllers Logic Integration
5. Close the Zone FB Logic Editor.

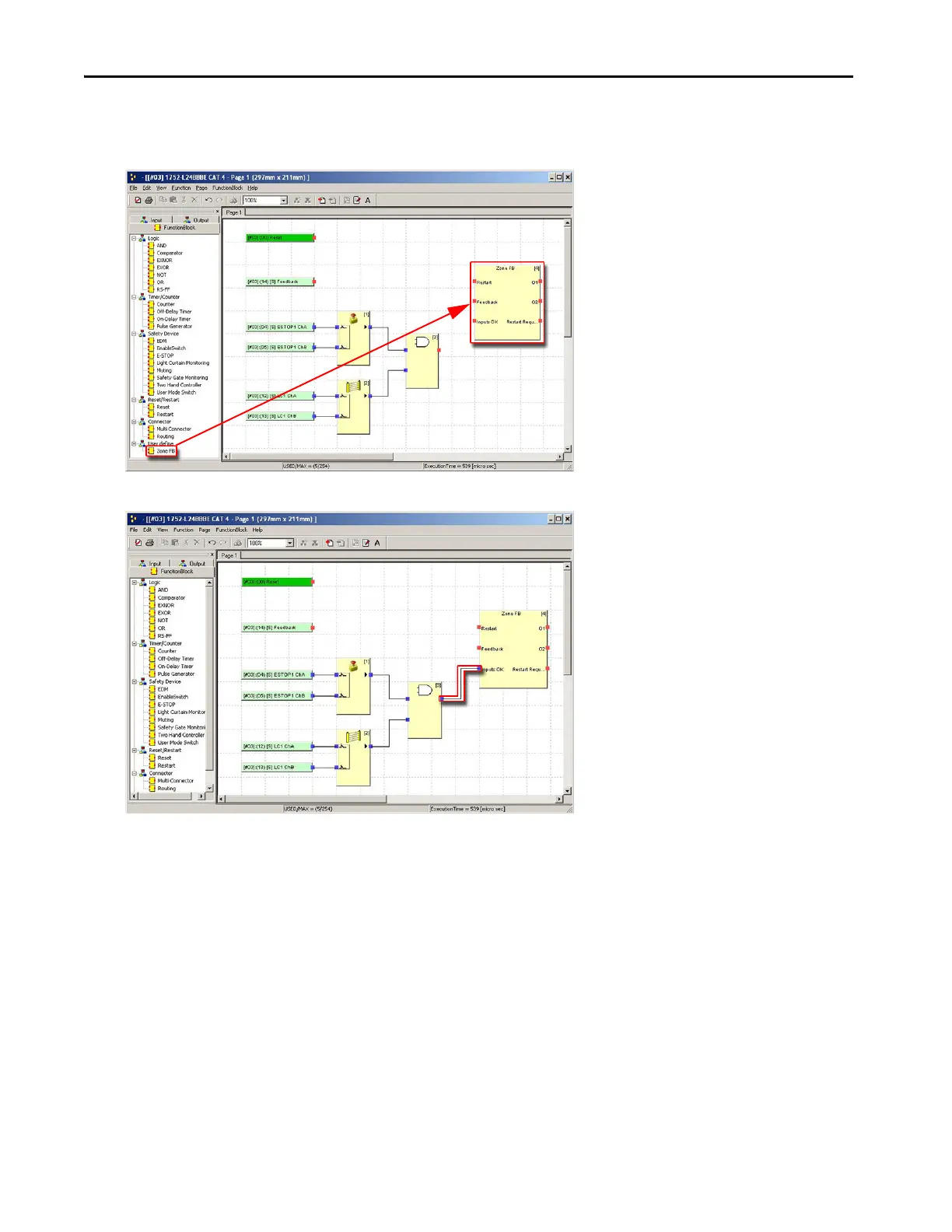

6. Select and drag the Zone FB block to the right of the input blocks on the Logic Editor page.
7. Click, drag, and drop the Safety Input Logic Block output pin onto the Zone FB’s Inputs OK input pin.
