SmartGuard™ 600 Controllers Logic Integration Chapter 4

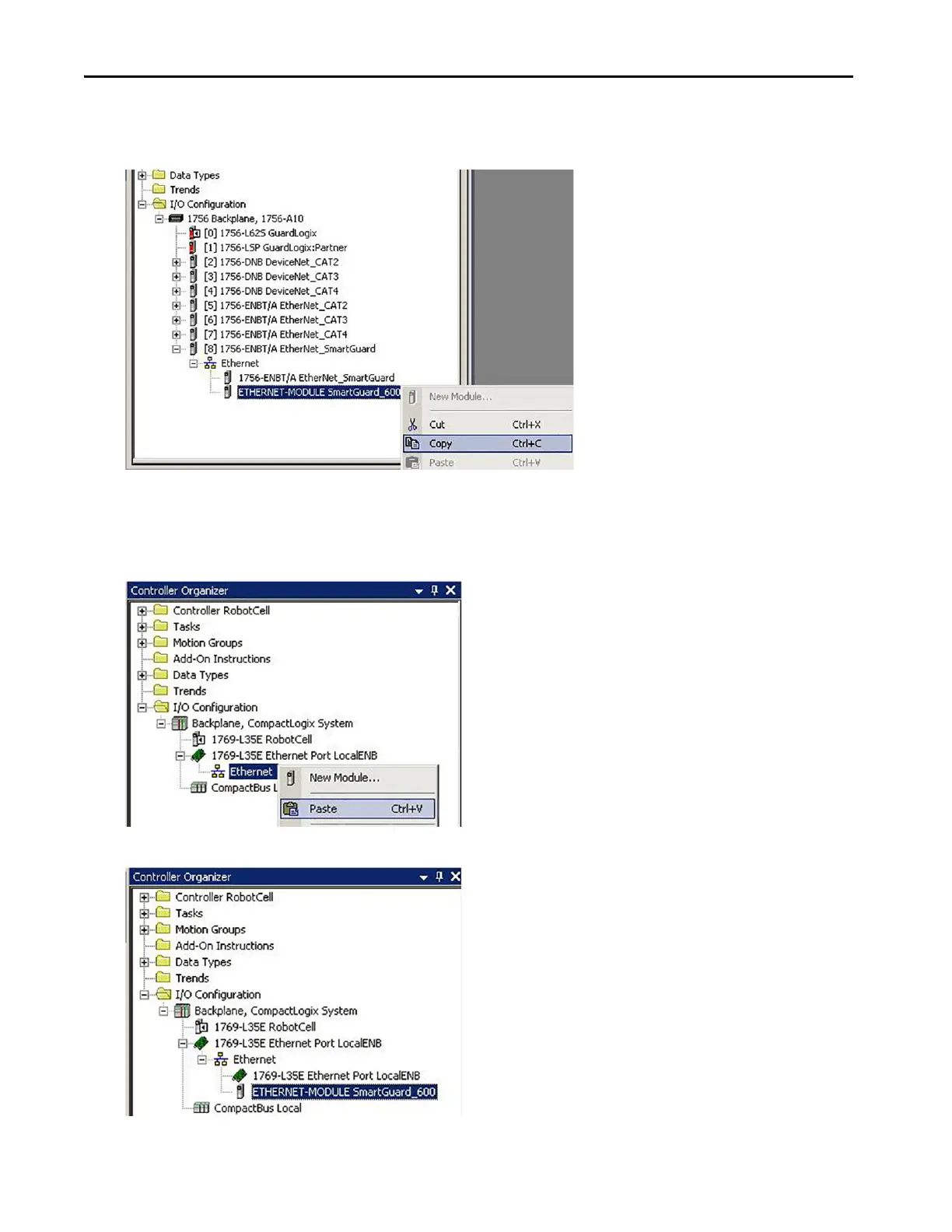

2. In the Controller Organizer, navigate to the I/O Configuration folder.
3. Right-click ETHERNET-MODULE SmartGuard_600 and choose Copy.
4. Open your existing Logix controller project and paste the ETHERNET-MODULE SmartGuard_600 module
into your I/O Configuration.
For this example, the SmartGuard 600 modules was added to the network of the CompactLogix L35E Local
Ethernet port.
5. Double-click the SmartGuard 600 module to open it’s Properties dialog box.
