Chapter 5 FactoryTalk® View ME Software Integration

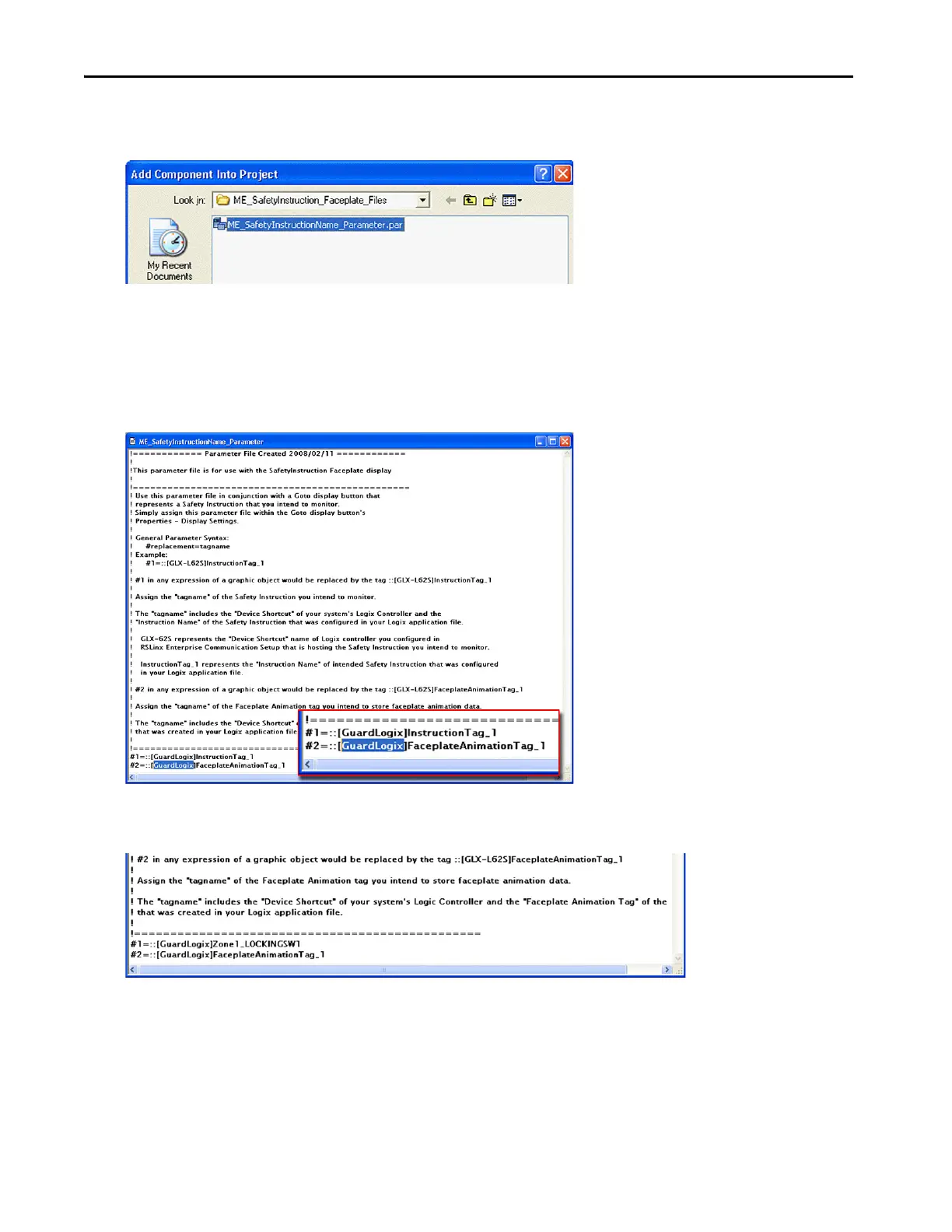

6. Browse to the SafetyInstruction Faceplate files in the toolkit and open the ME_SafetyInstruction_Faceplate_Files
folder.
7. Select the ME_SafetyInstruction_Parameter file.
8. Double-click the parameter file you just added to open it.
9. Edit the Device Shortcut name to match the GuardLogix controller that you configured for both parameter 1 and
parameter 2.
This example shows a shortcut name for a controller named ‘GuardLogix’.
10. Type the Safety Instruction tag name for the safety instruction you want to monitor.
This example shows a safety instruction tag named ‘Zone1_LOCKINGSW1’.
11. Type the name of the user-defined tag for the user-defined data type that you created for your corresponding safety
instruction.
