Rockwell Automation Publication 750-TG100B-EN-P - June 2019 109

Frame 7 Components Chapter 6

Power/Filter Module

Heatsink Fan Assembly

Replacement

Replace a power/filter module heatsink fan assembly with kit catalog number

SK-RM-MFAN-F7.

Remove the Power/Filter Module Fan Assembly

Follow these steps to remove the power/filter module heatsink fan assembly.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

3. Open the enclosure door.

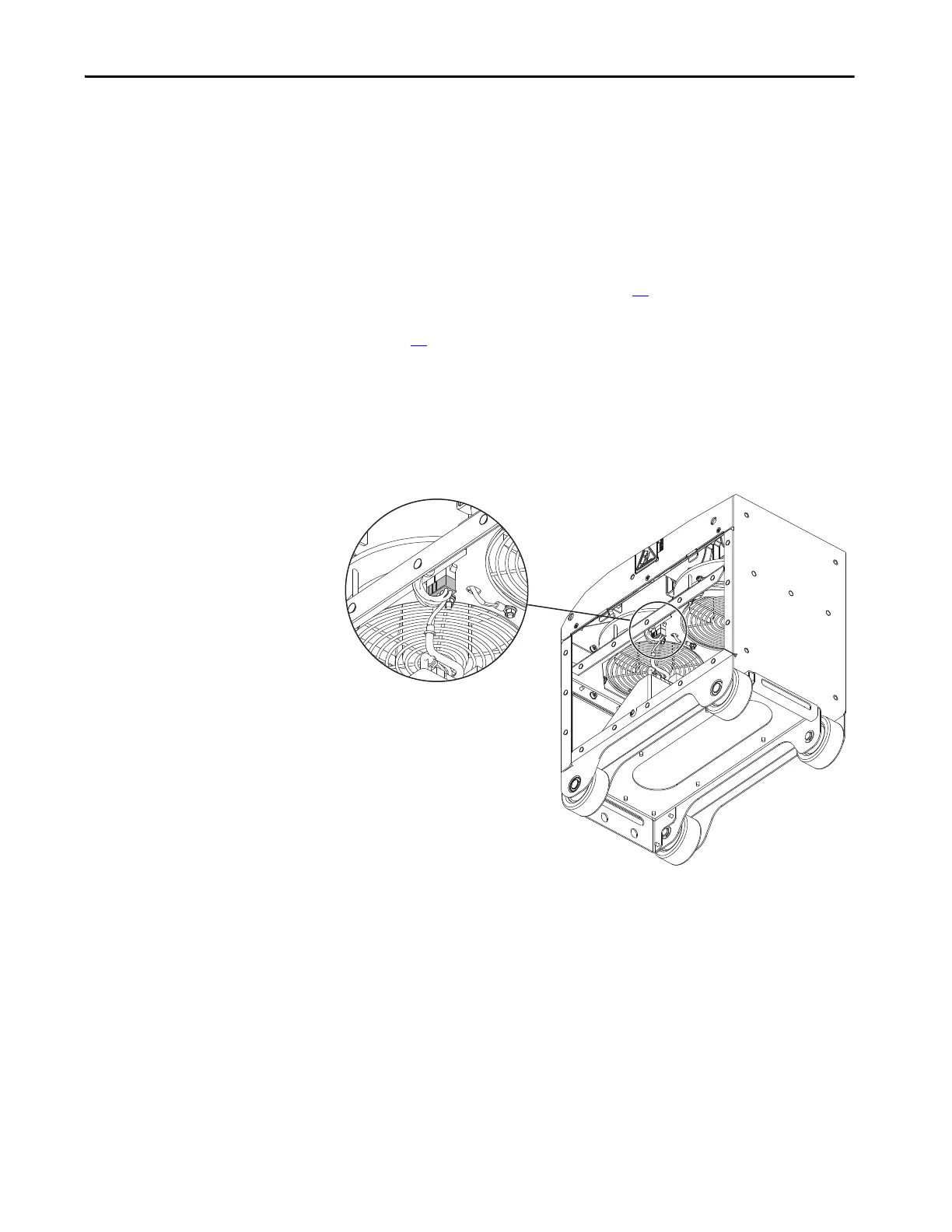

4. Below the fan assembly, reach through the opening in the front of the

power or LCL filter module chassis, and disconnect the fan power supply

connector P4 from J4 on the fan assembly.
