Rockwell Automation Allen-Bradley PowerFlex 750 Series

To Next Page

To Previous Page

64 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 4 Frame 5 Components

Fan Power Supply Circuit

Board Replacement

Replace a fan power supply circuit board with kit catalog number

SK-RM-PSB1-F5-F6.

Remove the Fan Power Supply Circuit Board

Follow these steps to remove the fan power supply circuit board.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

3. Remove the cover from the chassis. See Remove the Cover on page 56

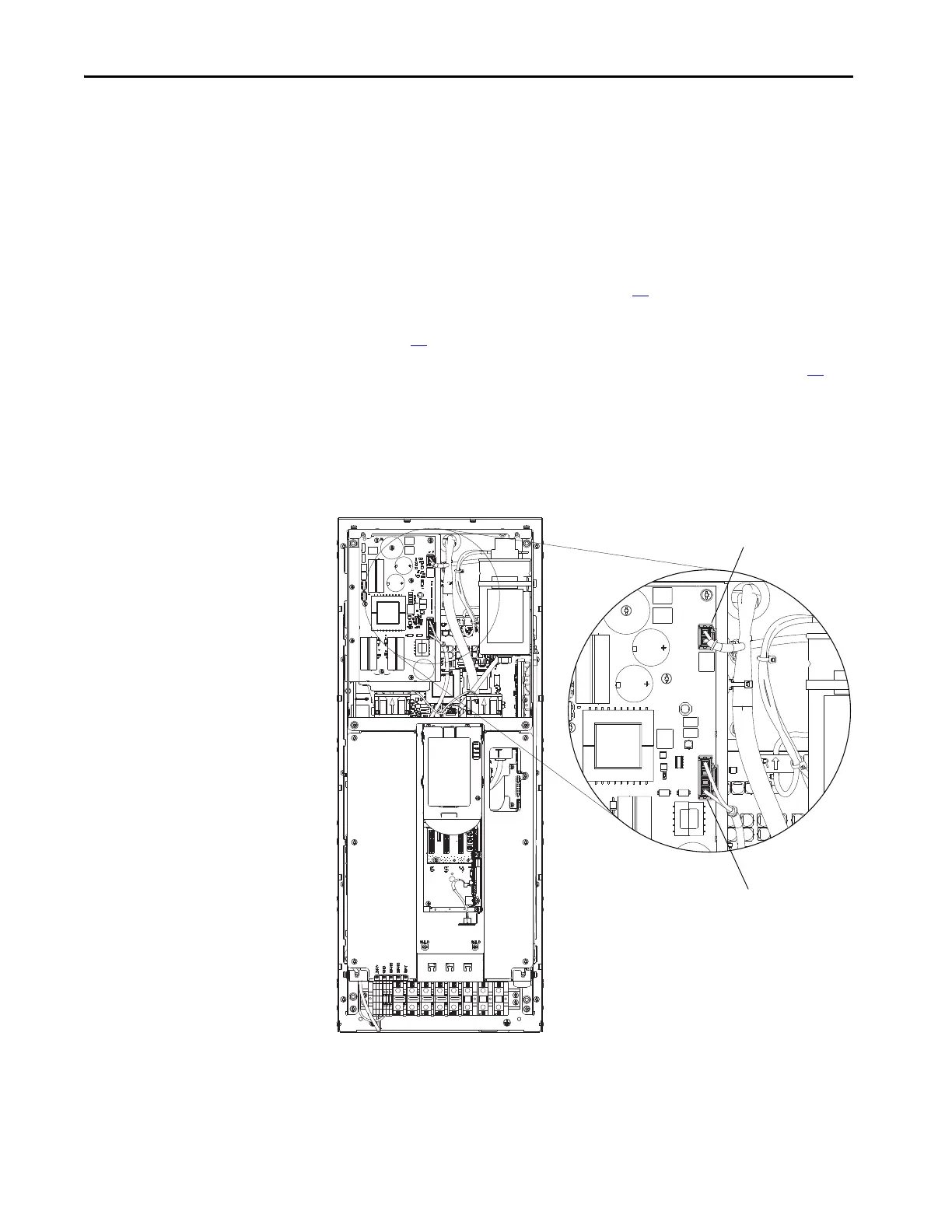

4. Disconnect these cable connectors from the fan power supply circuit

board:

•P1 from J1

•P2 from J2
