Rockwell Automation Publication 750-TG100B-EN-P - June 2019 171
Control Bay and Control Pod Components Chapter 7
Install the Control Pod
Install the control pod in the reverse order of removal.
When installing the fiber-optic cables:
1. Without bending the cable to a radius less than 50 mm (2 in.), fully insert
the fiber-optic cable into the transceiver.
2. Insert the transceiver and fiber-optic cable into the connector on the
board, until you hear an audible ‘click.’

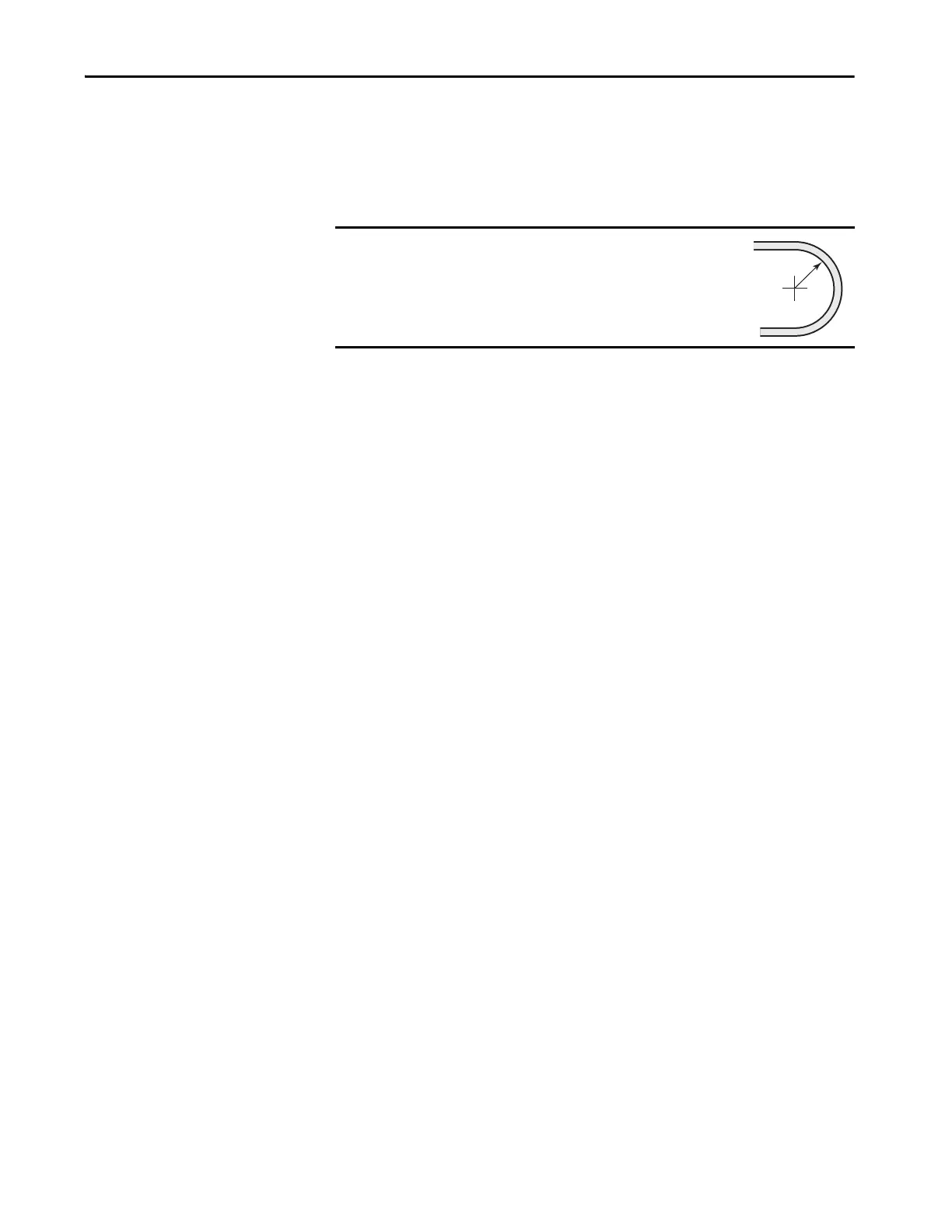

IMPORTANT
Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
