66 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 4 Frame 5 Components

Potential Earth (PE) Jumper

Replacement

Replace a PE jumper with kit catalog number SK-RM-JMPR1-F5.

Remove the PE Jumper

Follow these steps to remove the PE jumper.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

3. Remove the cover from the chassis. See Remove the Cover on page 56

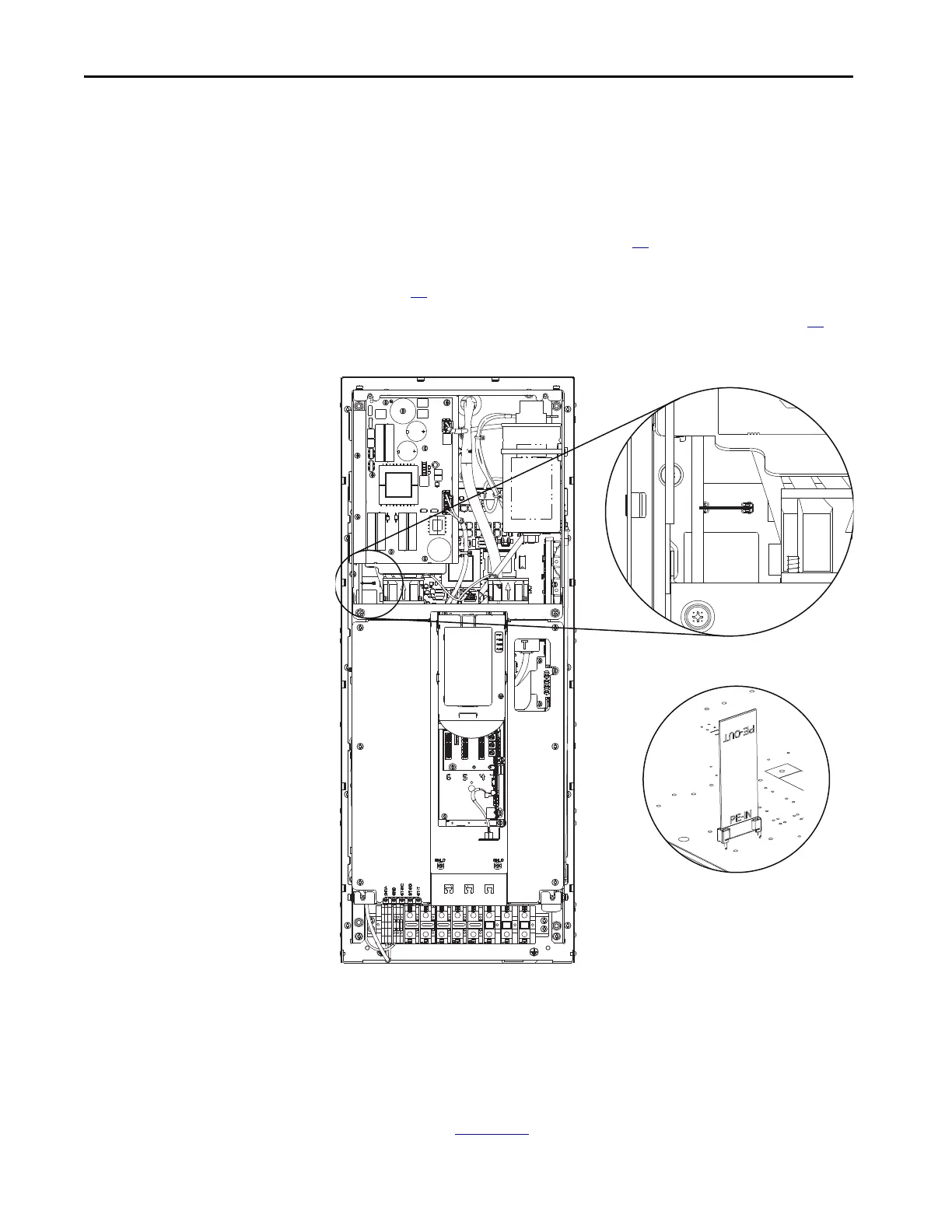

4. Remove the PE jumper from the power circuit board.

Install the PE Jumper

Install the PE jumper in the reverse order of removal.

• Verify that the jumper is installed in the correct position as required for

your grounding scheme and application. See the PowerFlex 750-Series

Products with TotalFORCE Control, Installation Instructions,

publication 750-IN100

, for jumper configuration.
