Rockwell Automation Publication 750-TG100B-EN-P - June 2019 57
Frame 5 Components Chapter 4
Main Control Circuit Board
Replacement
Replace a main control circuit board with kit catalog number
SK-RM-MCB1-PF755.
Remove the Main Control Circuit Board
Follow these steps to remove the main control circuit board.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.

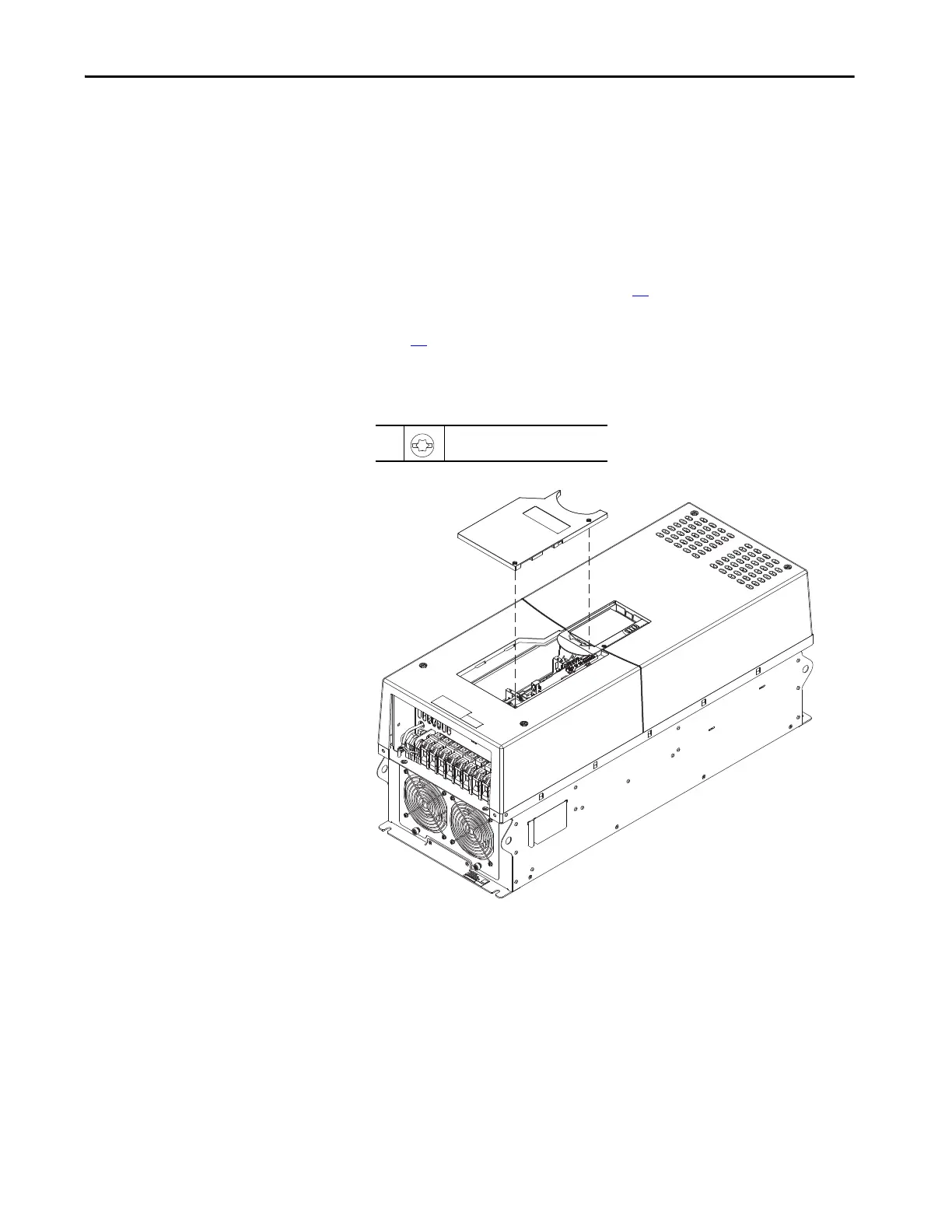

3. Loosen the two captive thumb screws on the control pod access cover and
remove the cover.
3
T15 or F - 6.4 mm (0.25 in.)
0.45 N
•m (4 lb•in)
