254 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

6. Disconnect the stab connectors from the terminals on the balance

resistors.

7. Remove the upper M4 nut that secures the balance resistor to the power

module chassis.

8. Loosen the lower M4 nut that secures the balance resistor to the power

module chassis and remove the resistors.

Install the Balance Resistors

Install the balance resistors in the reverse order of removal.

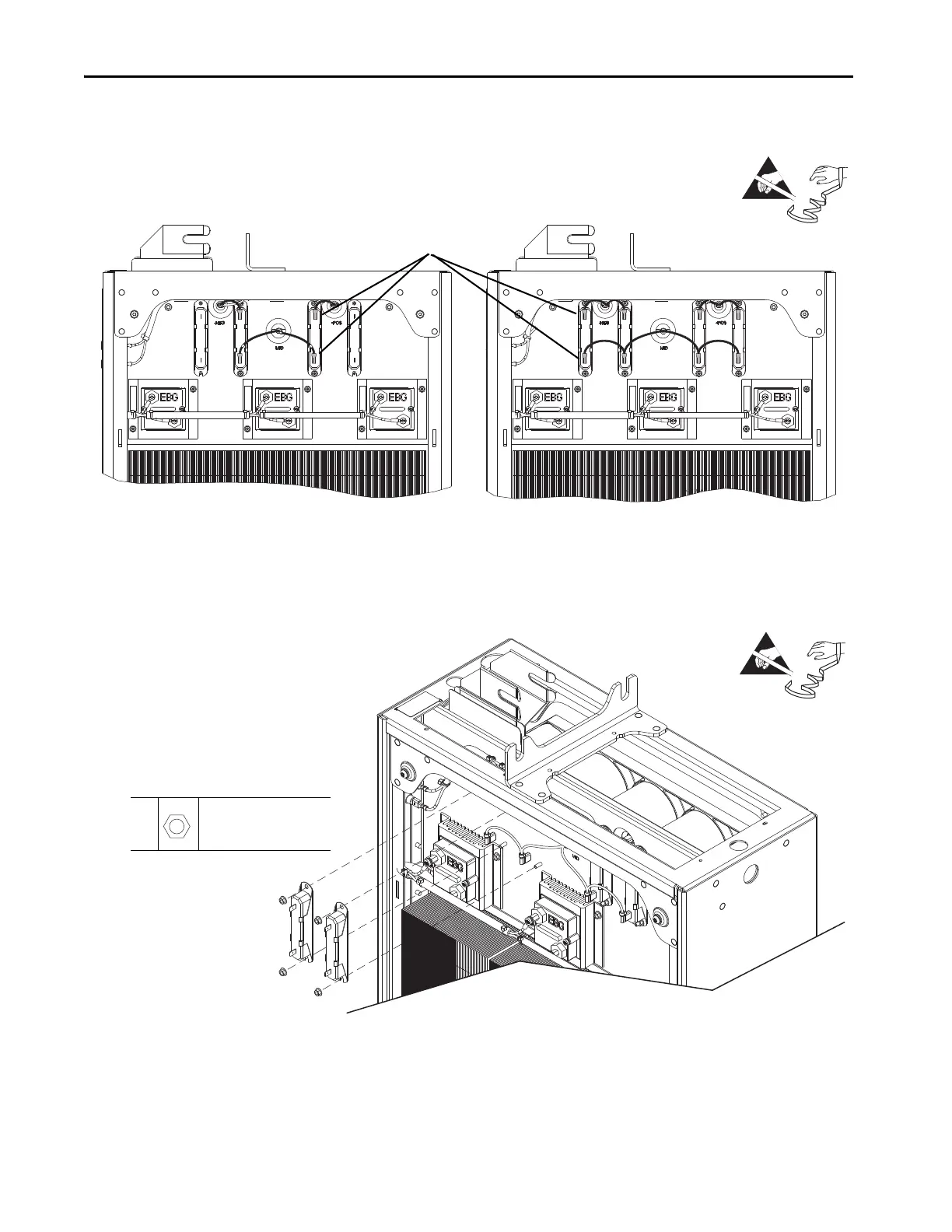

Two Balance Resistor Assembly

Four Balance Resistor Assembly

Balance Resistor Connections

7, 8

7 mm

2.6 N•m (23 lb•in)
