154 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 7 Control Bay and Control Pod Components

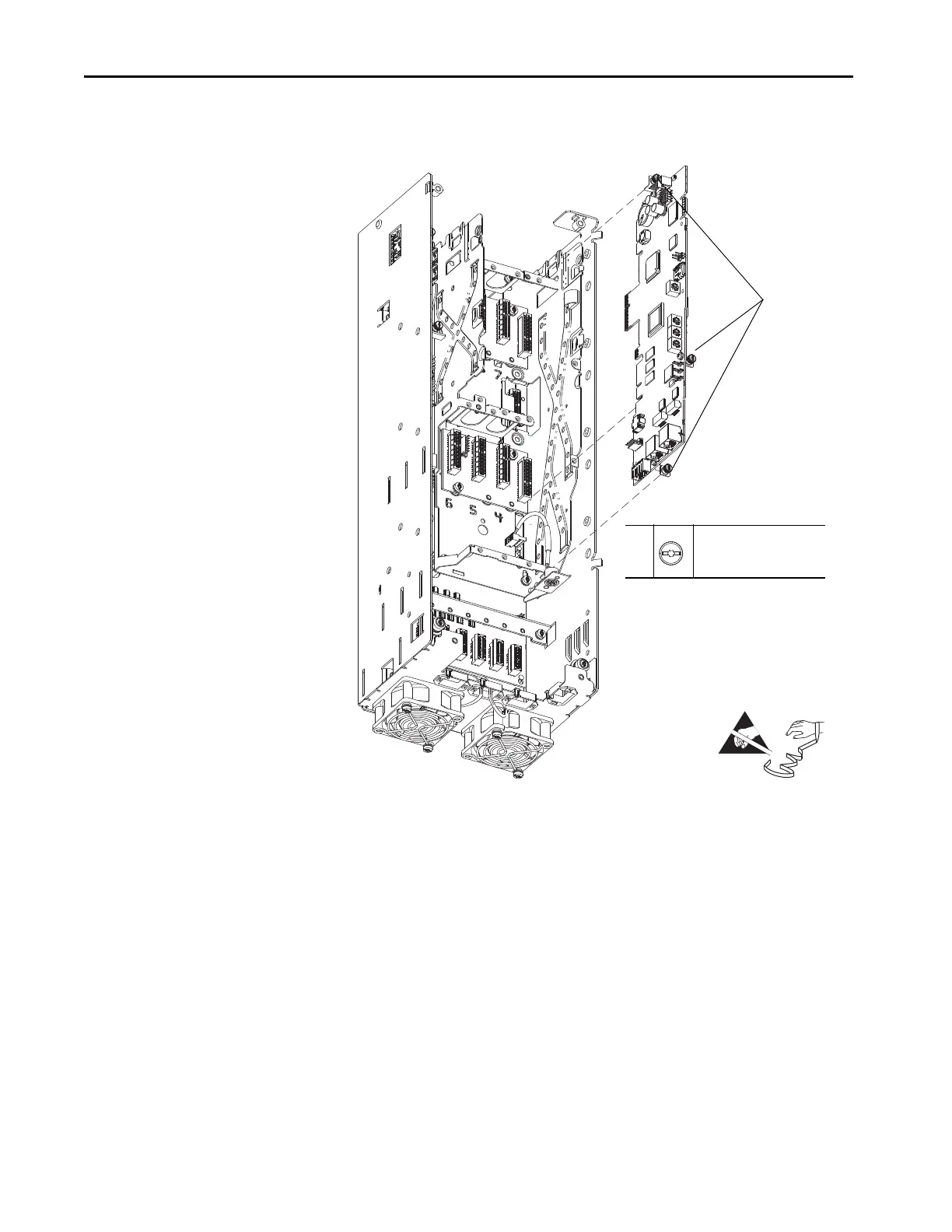

10. Loosen the three captive thumb screws that secure the main control board

to the pod chassis and remove the board.

Install the Main Control Circuit Board

Install the main control circuit board in the reverse order of removal.

–

T15 or F - 5 mm (0.19 in.)

0.45 N•m (4 lb•in)

HIM Bezel Not Shown for Clarity Only.
