274 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 9 Power Bay Components

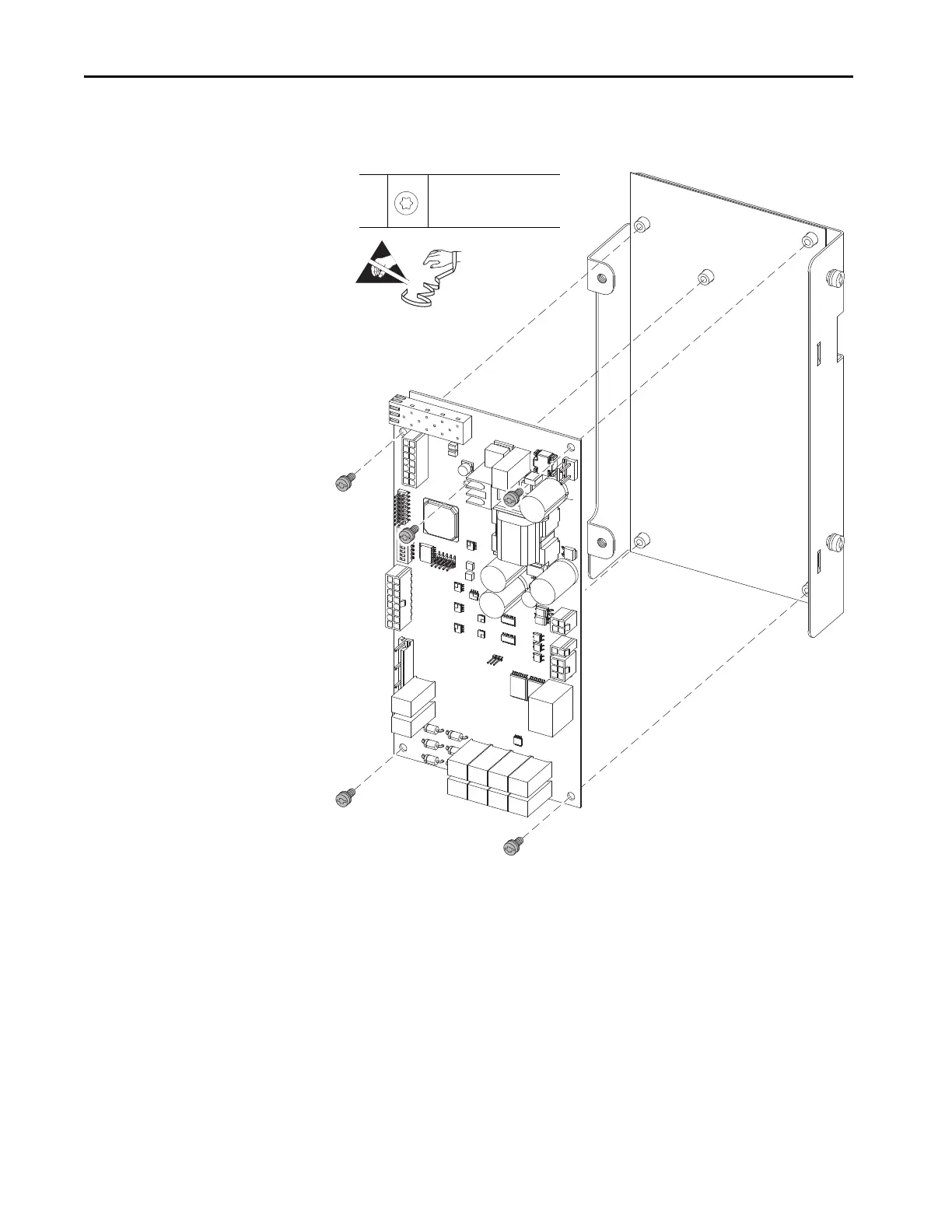

14. Remove the five M4 x 8 mm torx screws that secure the current sense
circuit board to the circuit board tray and remove the circuit board.
Install the Current Sense Circuit Board
Install the current sense circuit board in the reverse order of removal.
1. Secure the wires to the circuit board tray by using cable ties in the same
locations as previously secured.
2. When installing the fiber-optic cables:
14
M4 x 8 mm
T25
1.8 N•m (15.5 lb•in)
=
