212 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

IP54 Exhaust Fan Fuse

Replacement

Replace the exhaust fan fuse on a power bay with kit catalog number

SK-RM-INVFAN1-FUSE (Time Delay, 250V, 3.5 A, Cartridge).

Remove the IP54 Exhaust Fan Fuse

Follow these steps to remove the IP54 exhaust fan fuse on a power bay.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

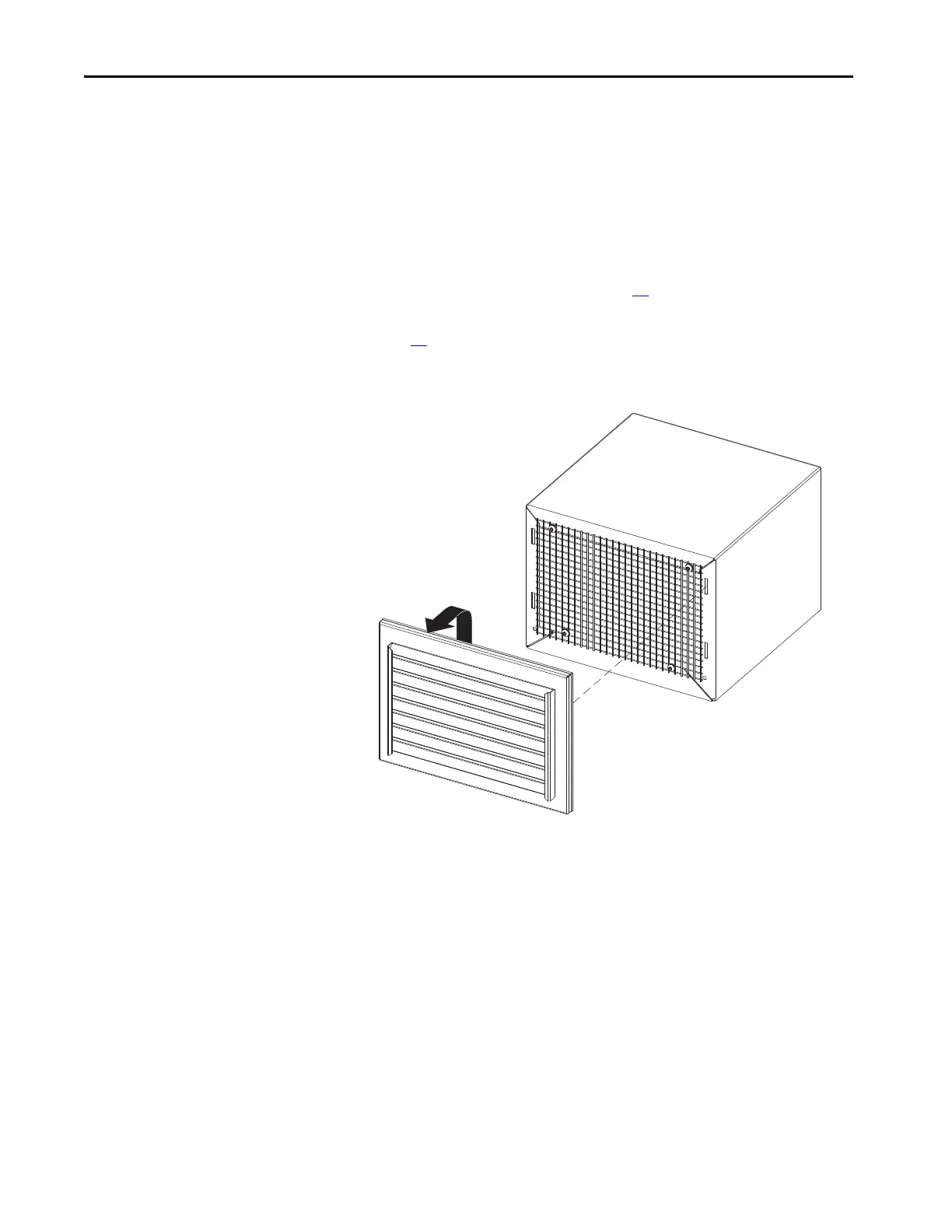

3. Slide the front vent up to release the tabs from the slots in the vent hood

and remove the vent.
