Rockwell Automation Publication 750-TG100B-EN-P - June 2019 63

Frame 5 Components Chapter 4

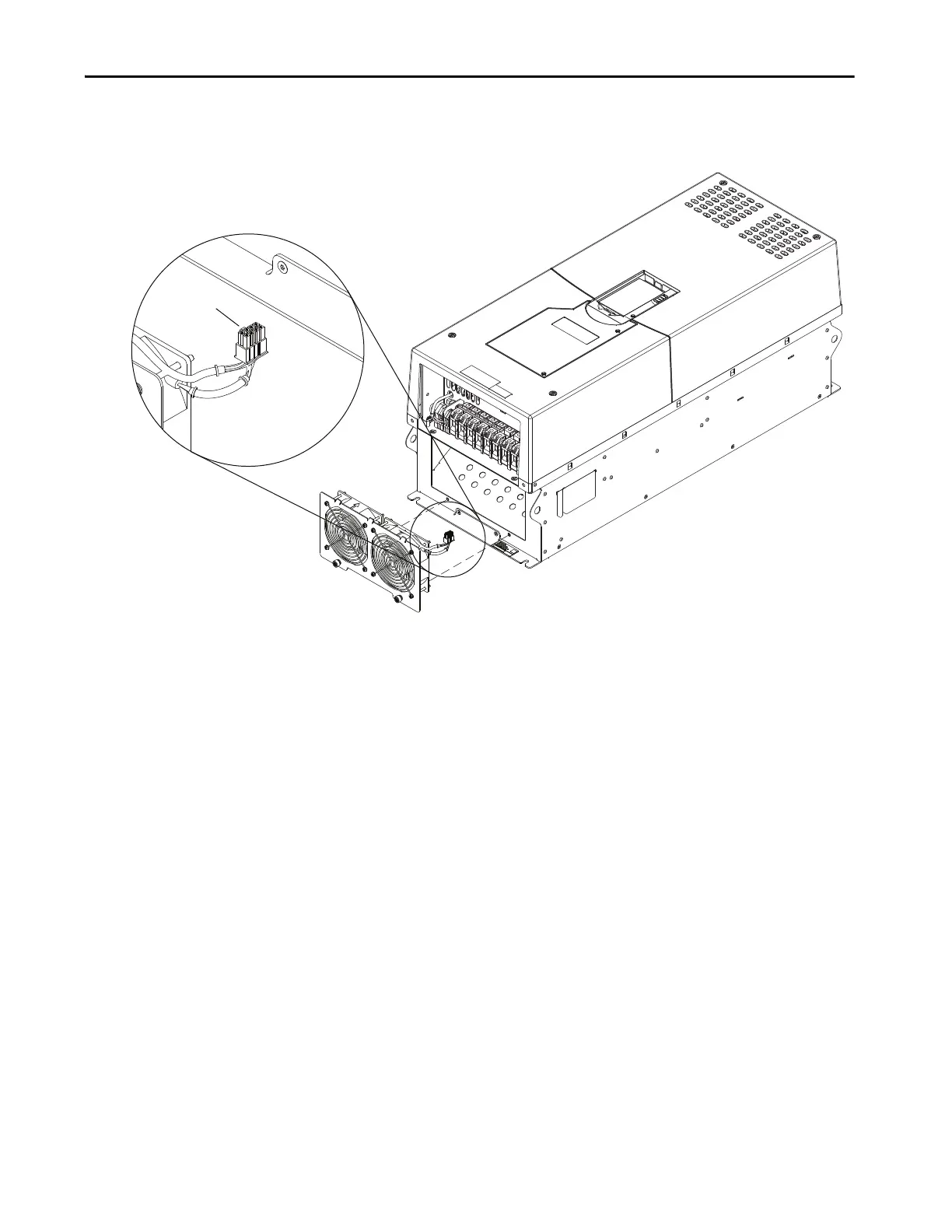

5. Disconnect the fan wire harness connector P2 from connector J2 inside

the chassis and remove the fan assembly.

Install the Heatsink Fan Assembly

Install the heatsink fan assembly in the reverse order of removal.
