232 Rockwell Automation Publication 750-TG100B-EN-P - June 2019
Chapter 9 Power Bay Components

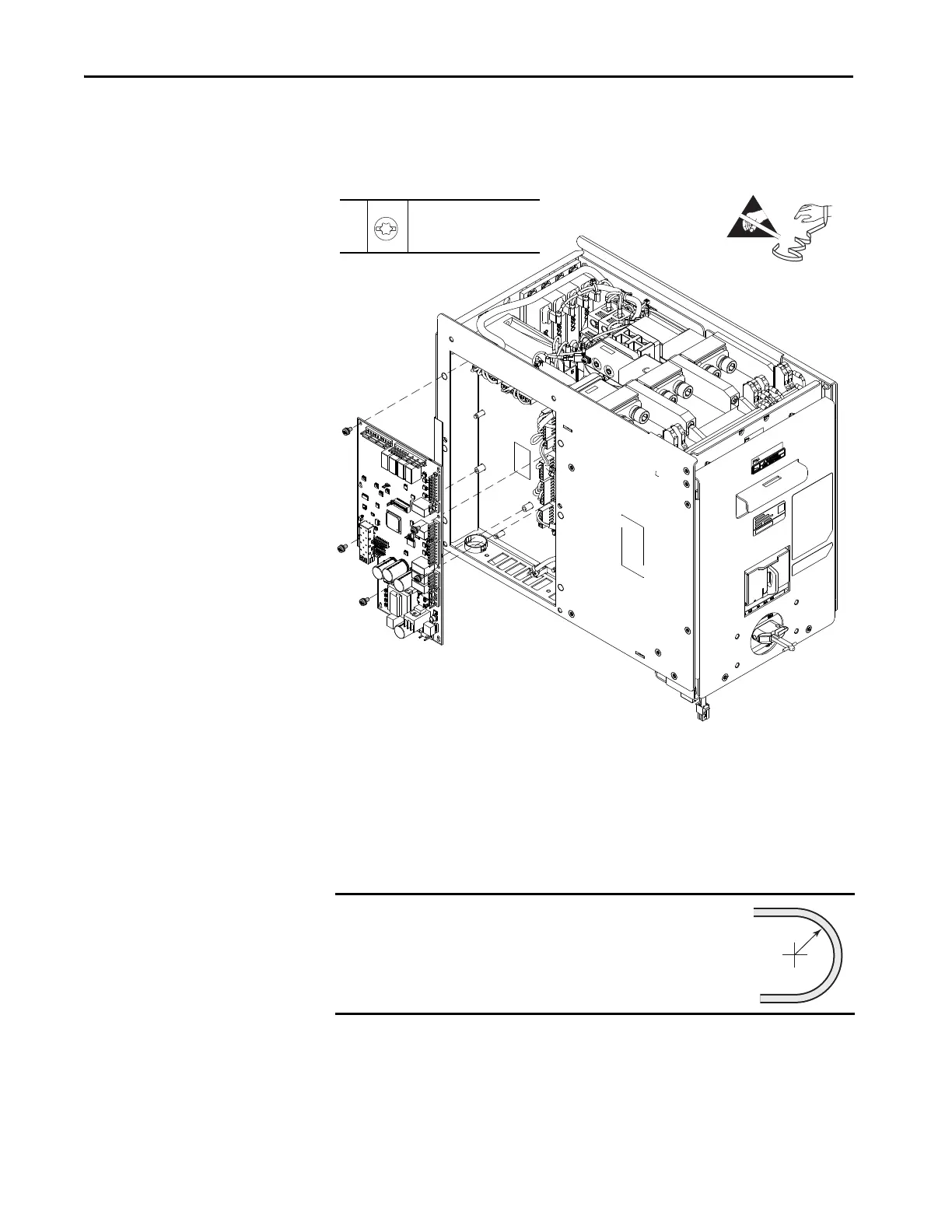

9. Remove the five M4 x 8 mm slotted-torx screws that secure the DC
precharge circuit board to the standoffs on the chassis. Lift the board up so
that the keyholes on the board clear the mounting posts and remove the
board.
Install the DC Precharge Circuit Board
Install the DC precharge circuit board in the reverse order of removal.
When installing the fiber-optic cable:
1. Without bending the cable to a radius less than 50 mm (2 in.), fully insert
the fiber-optic cable into the transceiver.
2. Insert the transceiver and fiber-optic cable into the port on the board, until
you hear an audible ‘click.’
IMPORTANT
Minimum inside bend radius for fiber-optic cable is 50 mm
(2 in.). Any bends with a shorter inside radius can
permanently damage the fiber-optic cable. Signal
attenuation increases as inside bend radius is decreased.
9
M4 x 8 mm
T20
2.6 N
•m (23 lb•in)
