198 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 8 Input Bay Components

5. Pull out on the tabs at the top of the fuse holder and remove the fuse.

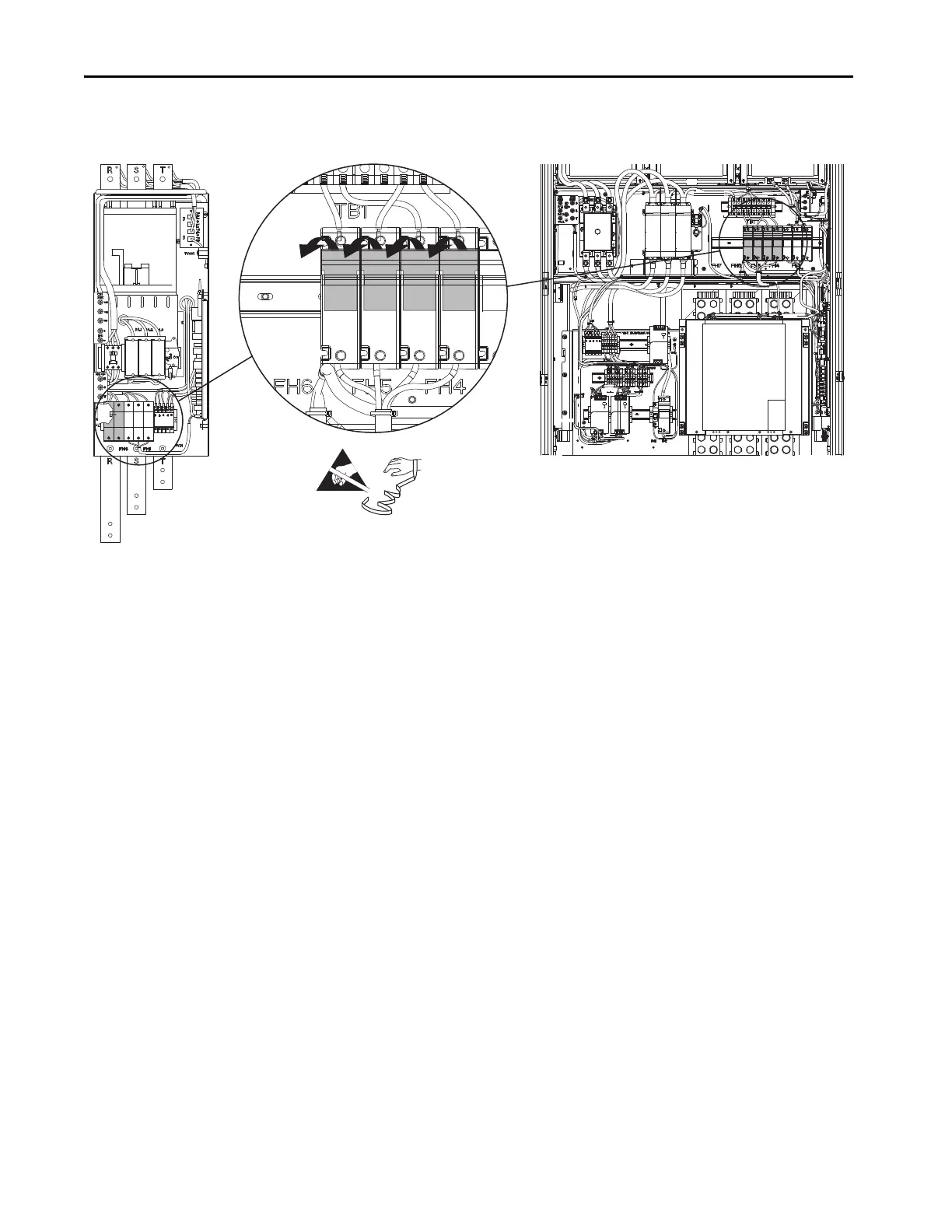

Install the Control Transformer Fuses

Install the control transformer fuses in the reverse order of removal.
