200 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 8 Input Bay Components

5. Pull the front of the fuse assembly out and remove the fuses.

Install the AC Precharge Fused Disconnect Fuses

Install the AC precharge fused disconnect fuses in the reverse order of removal.

Control Transformers

Control transformers are not available as a replacement kit. See the PowerFlex

755TM IP00 Open Type Kits, Technical Data, publication 750-TD101

, for a

complete list of Rockwell Automation recommended control transformer vendor

catalog numbers.

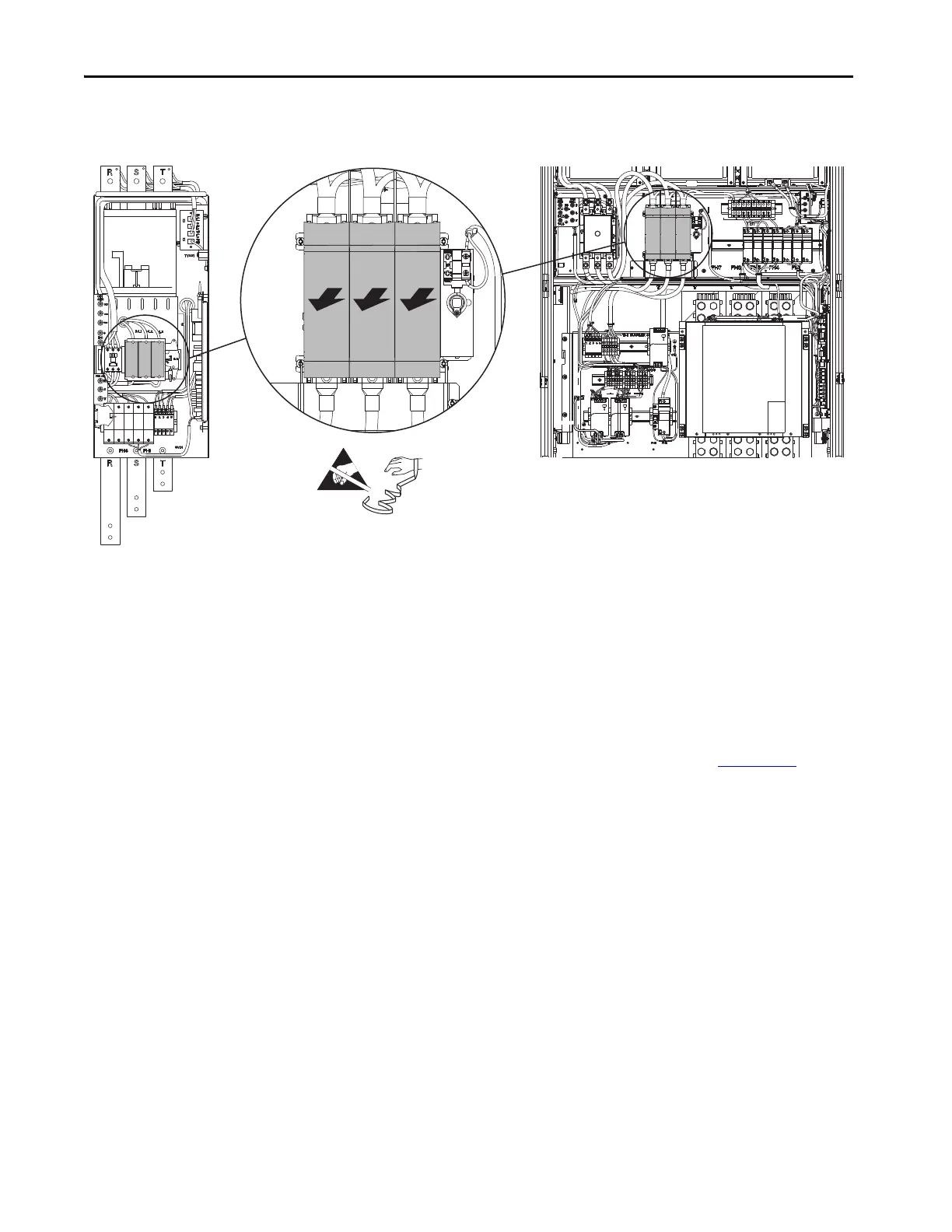

Frame 8 AC Precharge Module Frame 10 Input Bay
