Rockwell Automation Publication 750-TG100B-EN-P - June 2019 77

Frame 6 Components Chapter 5

Main Control Circuit Board

Replacement

Replace a main control circuit board with kit catalog number

SK-RM-MCB1-PF755.

Remove the Main Control Circuit Board

Follow these steps to remove the main control circuit board.

1. Review the Product Advisories on page 14

2. Remove power from the system. See Remove Power from the System on

page 15

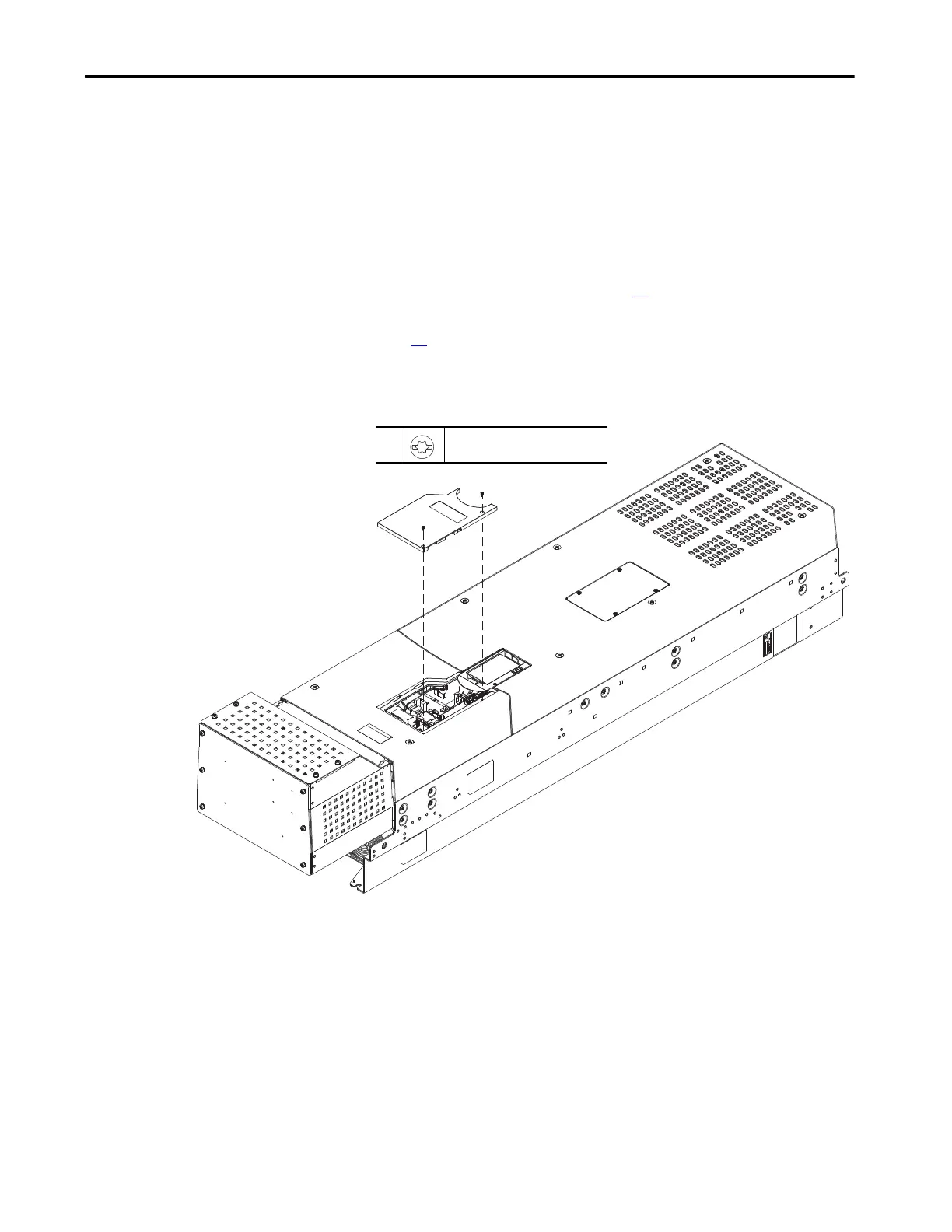

3. Loosen the two captive thumbscrews on the control pod access cover and

remove the cover.

T15 or F - 6.4 mm (0.25 in.)

0.45 N

•m (4 lb•in)
