256 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 9 Power Bay Components

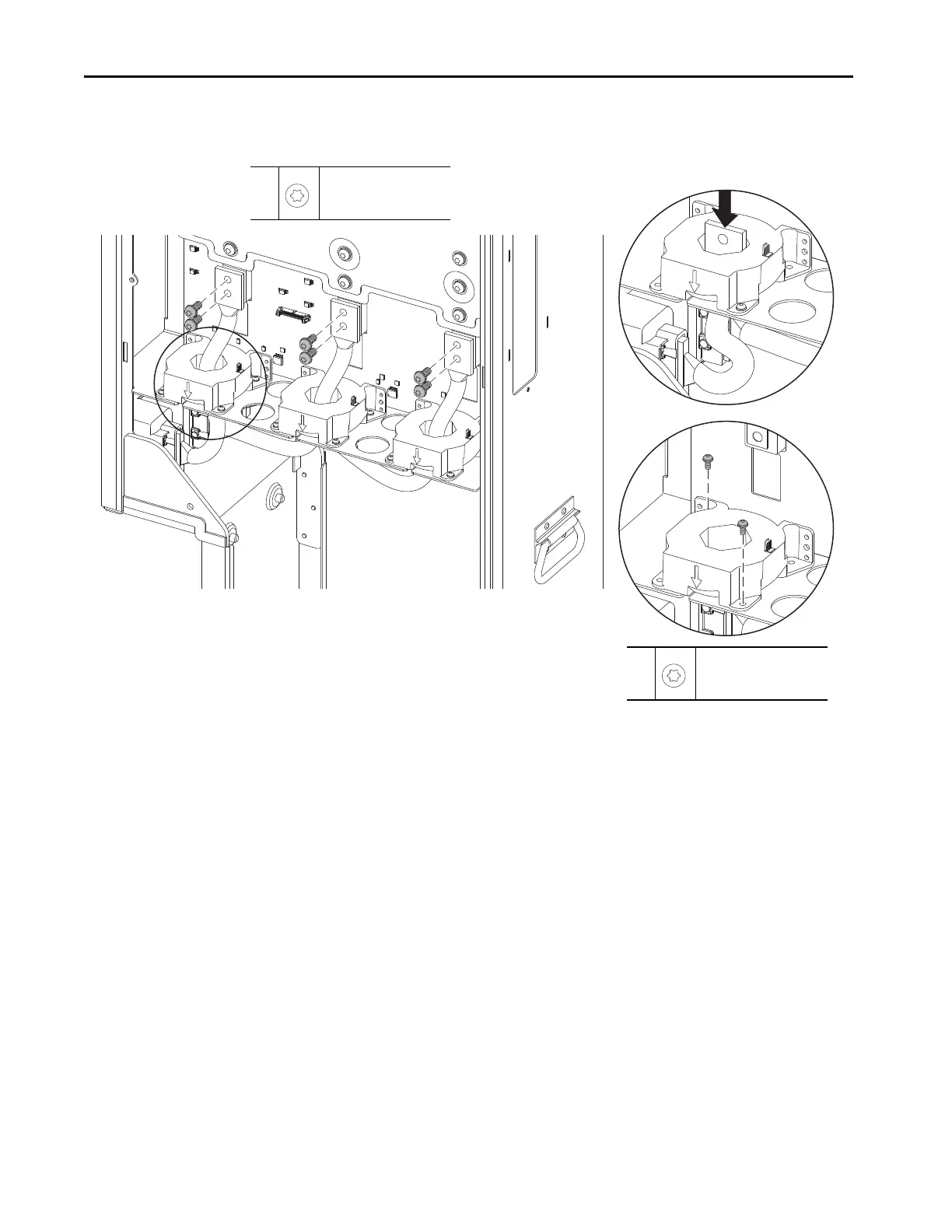

7. Remove the six M4 x 10 mm torx screws that secure the three current

sensors to the power module chassis and remove the current sensors.

Install the Current Sensors

Install the current sensors in the reverse order of removal.

M8 x 20 mm

T40

15 N•m (133 lb•in)

M4 x 10 mm

T25

2.6 N•m (23 lb•in)

Power Module without an Inductor Shown.
