Rockwell Automation Publication 750-TG100B-EN-P - June 2019 221
Power Bay Components Chapter 9
2. Place the slots on the cassette cover on the tabs on the door vent chassis.
3. Insert the fiber filter in the cassette chassis on the door and close and secure
the cassette cover to the door.
IP21 400/600 mm Wide
Door Vent Filter
Replacement
Replace the IP21, 400/600 mm wide door vent filter with the appropriate kit
catalog number:
• 400 mm, SK-RM-PB4DR-21FLTR1
• 600 mm, SK-RM-PB6DR-21FLTR1
Remove the IP21, 400/600 mm Wide Door Vent Filter
Follow these steps to remove the IP21, 400/600 mm wide door vent filter.
1. Review the Product Advisories on page 14
.
2. Remove power from the system. See Remove Power from the System on
page 15
.
3. Loosen the two or three slotted-Phillips head, captive screws that secure
the filter cassette cover and metal mesh screen to the cassette chassis on the
door and remove the cover and metal mesh filter.
4. Remove the metal mesh filter from the cover.
IMPORTANT Verify that the airflow direction arrow on the fiber filter media points inward,
toward the interior of the enclosure.
3
M4 x 10 mm
P2 or F - 6.4 mm (0.25 in.)
1.1 N•m (10 lb•in)

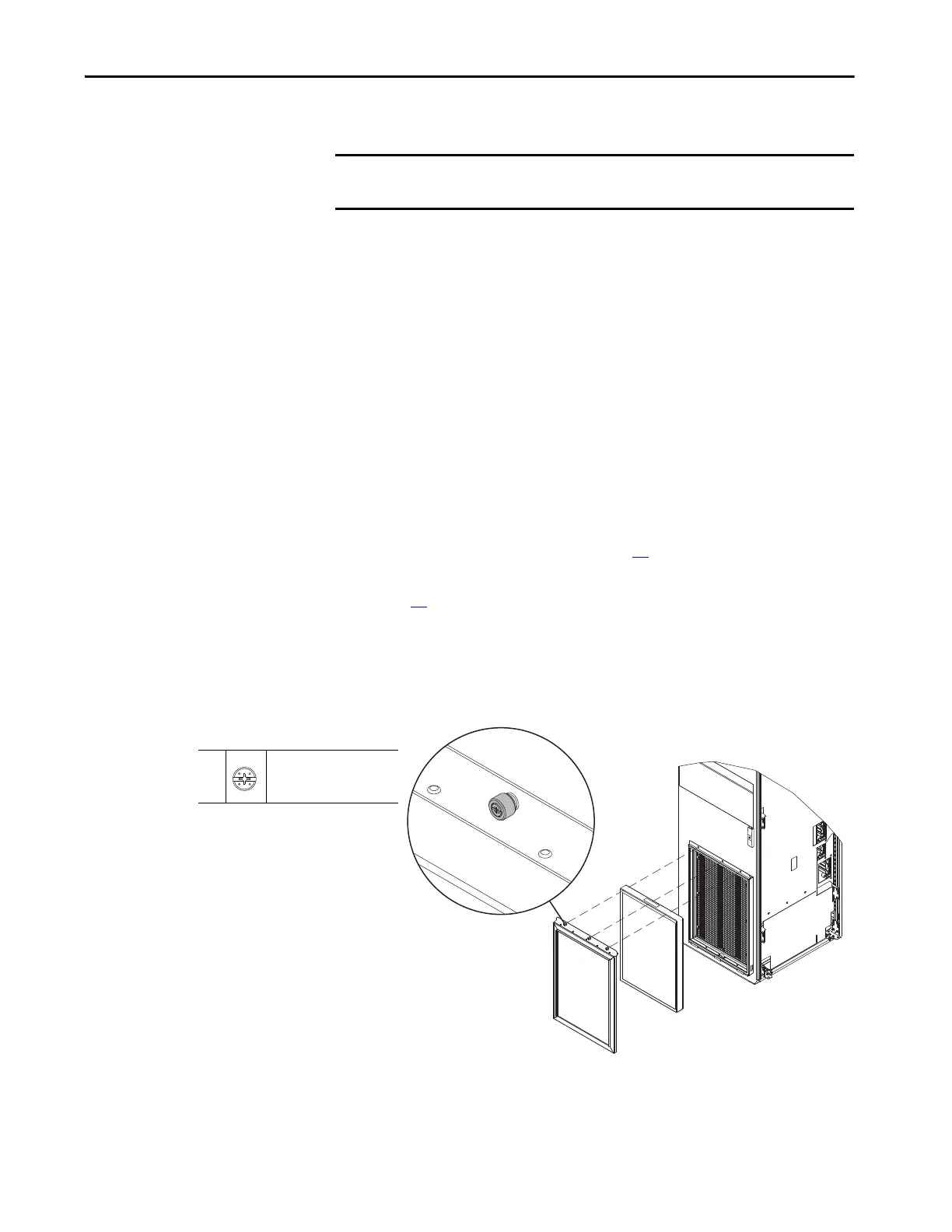

600 mm Wide Door Vent Shown.
