Rockwell Automation Publication 750-TG100B-EN-P - June 2019 121
Frame 7 Components Chapter 6

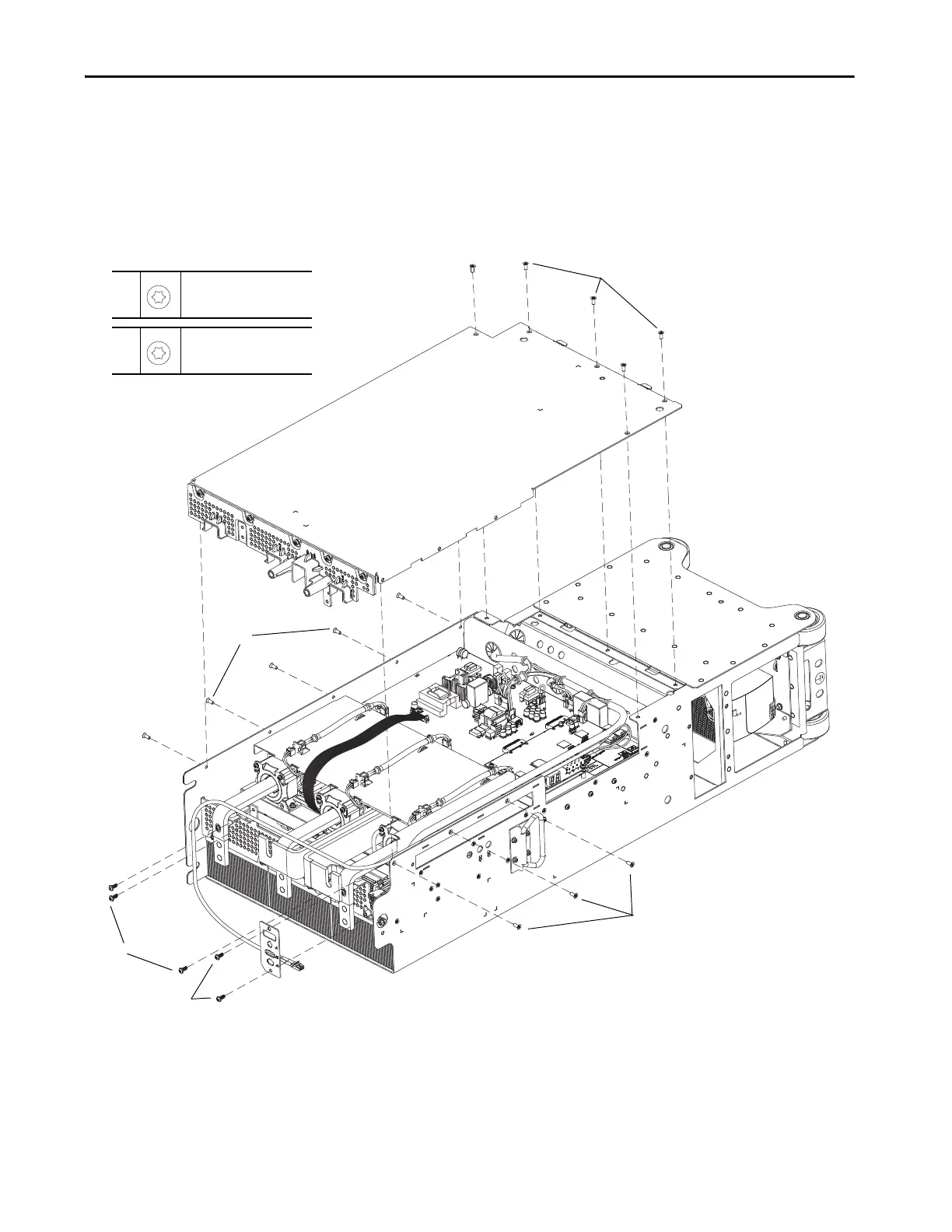

6. Remove the two M5 x 12 mm torx screws that secure the I/O connections
plate to the top of the power module chassis and remove the panel.
7. Remove the three M5 x 12 mm torx screws that secure the bus bar support
to the right, top side of the power module chassis.
8. Remove the 13 M5 x 10 mm torx screws that secure the right side cover to
the power module and remove the cover.
6, 7
M5 x 12 mm
T25
2.6 N•m (23.0 lb•in)
7
6
8
8
8
8
M5 x 10 mm
T25
6.0 N•m (53.0 lb•in)
