Rockwell Automation Publication 750-TG100B-EN-P - June 2019 149

Control Bay and Control Pod Components Chapter 7

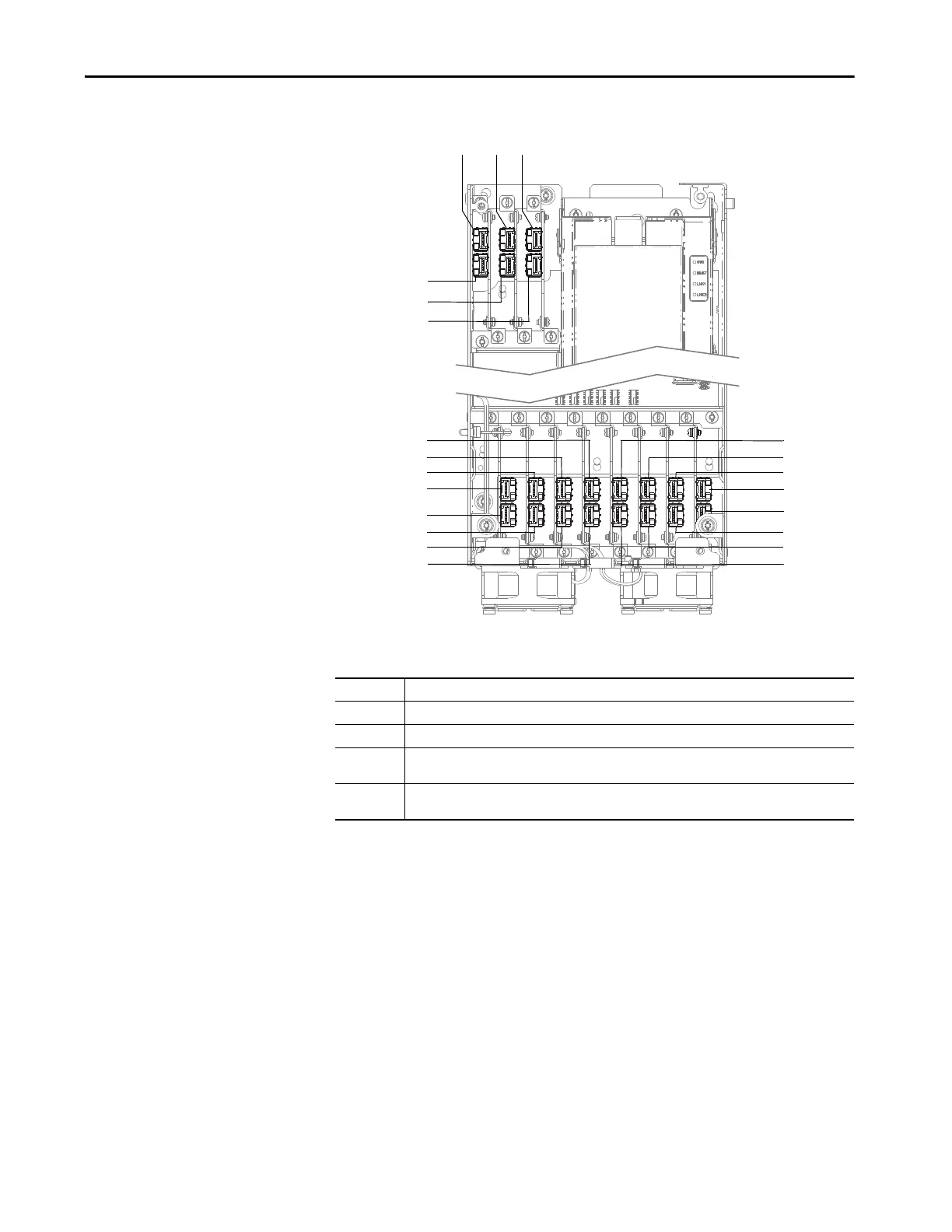

Table 12 - Fiber Transceiver Circuit Board Connections

Port

ACP0 Fiber transceiver port for the fiber-optic connection from ACP on the AC precharge control board.

ACP1 TAM Fiber transceiver port for the fiber-optic connection from TAM on the torque accuracy module.

L0…L9 Fiber transceiver ports for the fiber-optic connections from CNTL on the power layer interface board in

power modules that are used as line side converters.

M0…M9 Fiber transceiver ports for the fiber-optic connections from CNTL on the power layer interface board in

power modules that are used as motor side inverters.

ACP0 L0 L1

ACP1 / TAM
