16 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 1 Before You Begin Tests, Maintenance, or Repairs

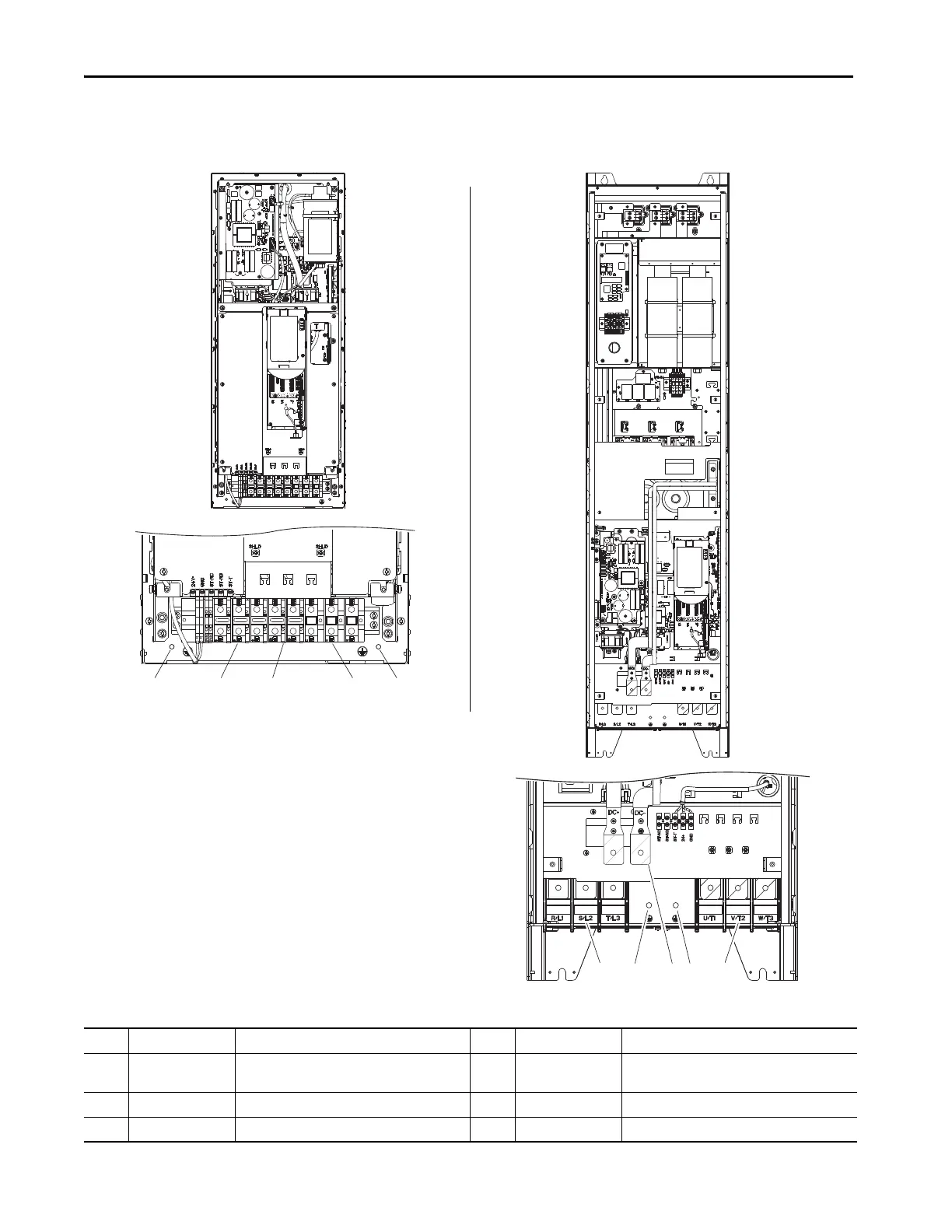

Figure 1 - Frame 5 and 6 Drives

21 543

Frame 5 (Shown with Cover Removed for Clarity Only) Frame 6

1 2 3 4 5

Table 1 - Frame 5 and 6 Terminal Identification

Item Name Description Item Name Description

1 PE grounding stud Termination point to chassis ground for AC line

shield

4 U/T1, V/T2, W/T3 AC output motor terminals

2 R/L1, S/L2, T/L3 AC line input power terminals 5 PE grounding stud Termination point to chassis ground for motor shield

3 DC+, DC– DC bus terminals — — —
