Rockwell Automation Publication 750-TG100B-EN-P - June 2019 165
Control Bay and Control Pod Components Chapter 7

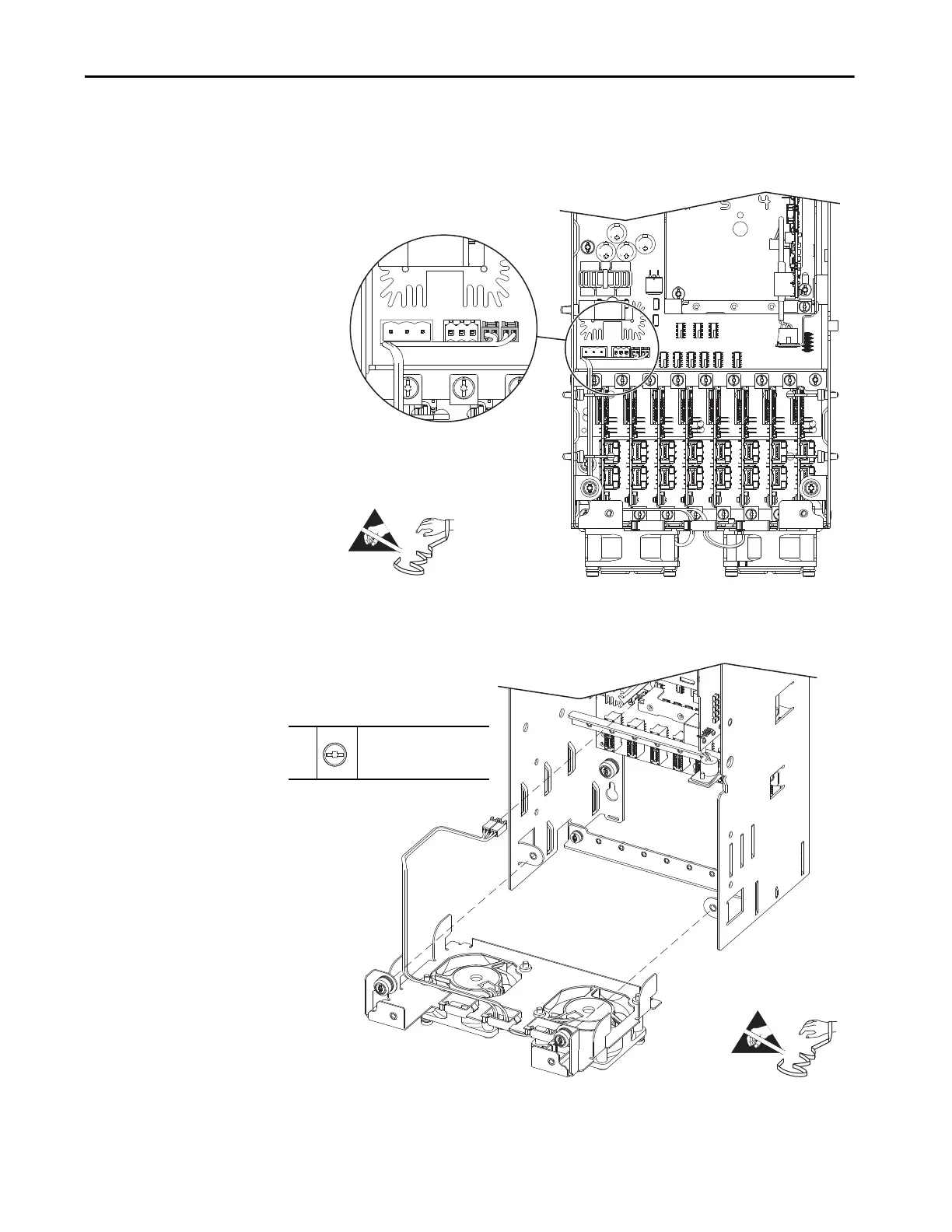

5. Disconnect the two fan power supply connectors from connectors J18 and
J25 on the fiber-optic interface board.
6. Remove the harness from the cable supports on the side of the pod chassis.
7. Loosen the two captive thumb screws on the fan assembly and pull the
assembly out and off the pod chassis.
7
–
T20 or F - 6.4 mm (0.25 in.)
2.6 N
•m (23 lb•in)
To Next Page
