Rockwell Automation Publication 750-TG100B-EN-P - June 2019 217

Power Bay Components Chapter 9

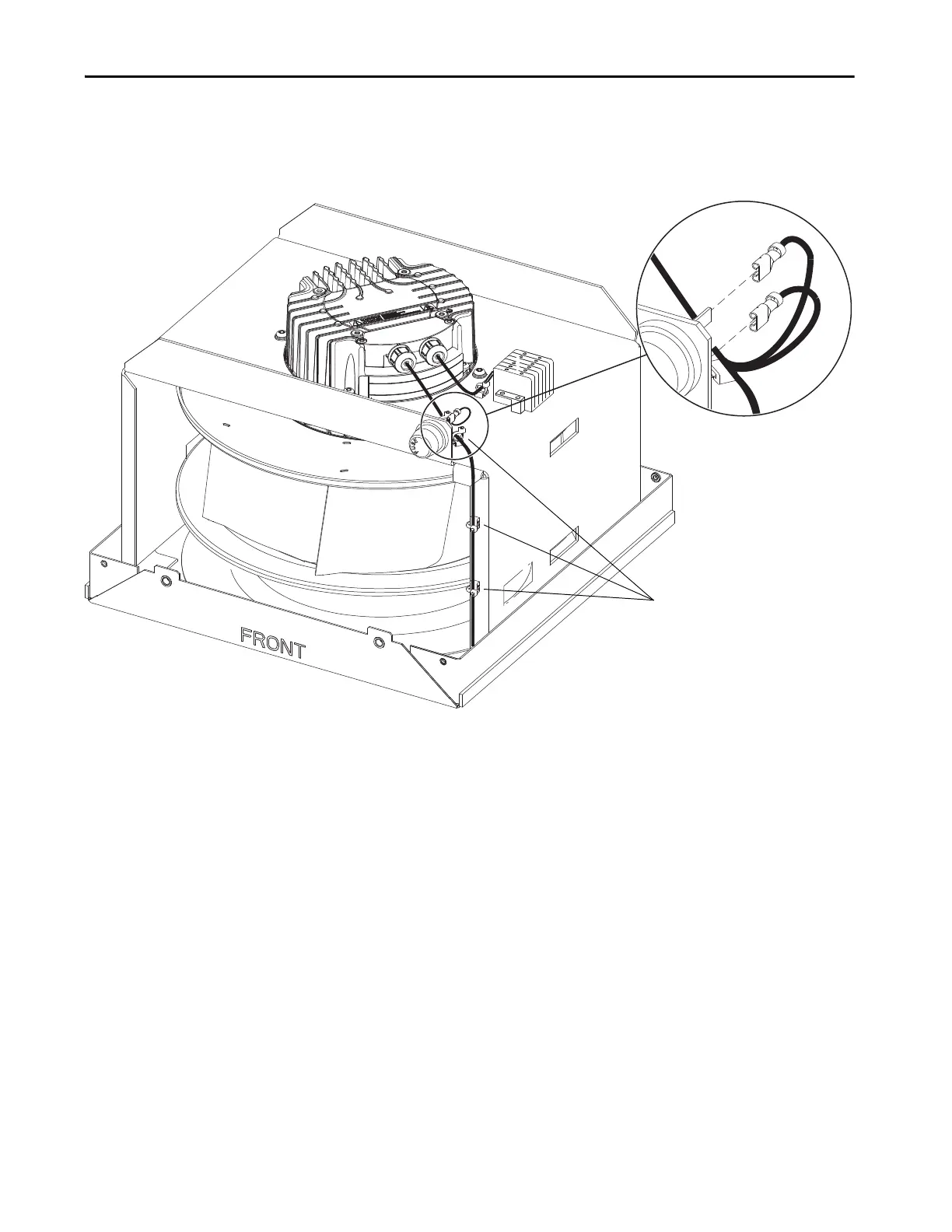

9. Cut the cable ties that secure the wire harness to the fan housing.

10. Disconnect the two wires from the fuse holder on the front of the vent

housing.
