Rockwell Automation Publication 750-TG100B-EN-P - June 2019 223
Power Bay Components Chapter 9

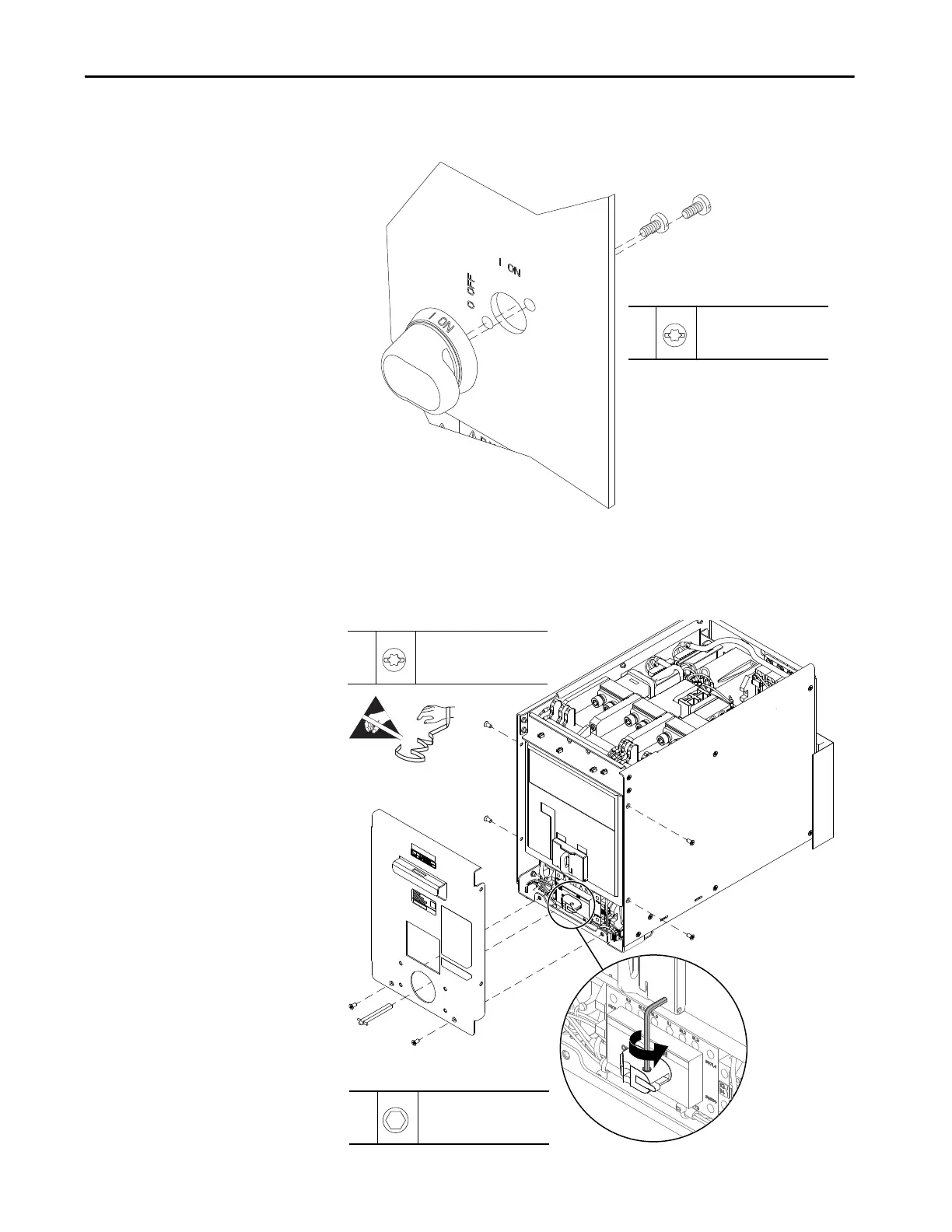

4. Remove the two M4 x 12 mm screws that secure the disconnect handle to
the door and remove the handle.
5. Remove the six M5 x 10 mm screws that secure the front cover to the DC
precharge unit and remove the cover.
6. Loosen the hexagonal screw that secures the disconnect handle shaft to the
disconnect switch and remove the handle.
4
M4 x 12 mm
T20
6.2 N
m (55 lbin)
5
M5 x 10 mm
T20
6.2 Nm (55 lbin)
6
2.5 mm
0.6 N•m (5.4 lb•in)
=
