Rockwell Automation Publication 750-TG100B-EN-P - June 2019 245

Power Bay Components Chapter 9

2. Remove power from the system. See Remove Power from the System on

page 15

3. Open the corresponding power bay enclosure door.

4. Remove the power module from the enclosure. See Power Module

Replacement on page 236

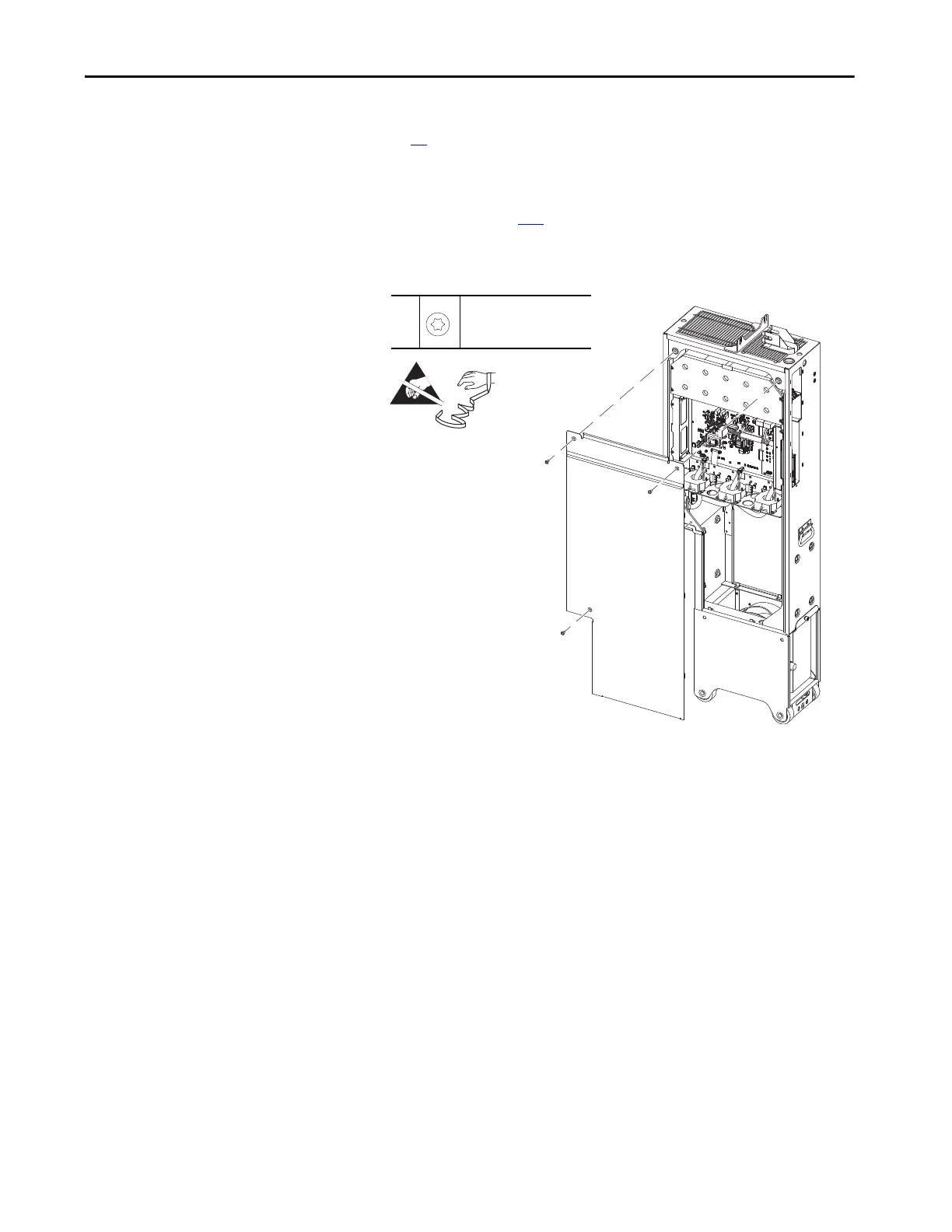

5. Remove the three M6 x 16 mm torx screws that secure the left-side cover

to the power module chassis and remove the cover.

M6 x 16 mm

T30

5.2 N•m (46 lb•in)
