288 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 10 Wire Entry/Exit Bay Components

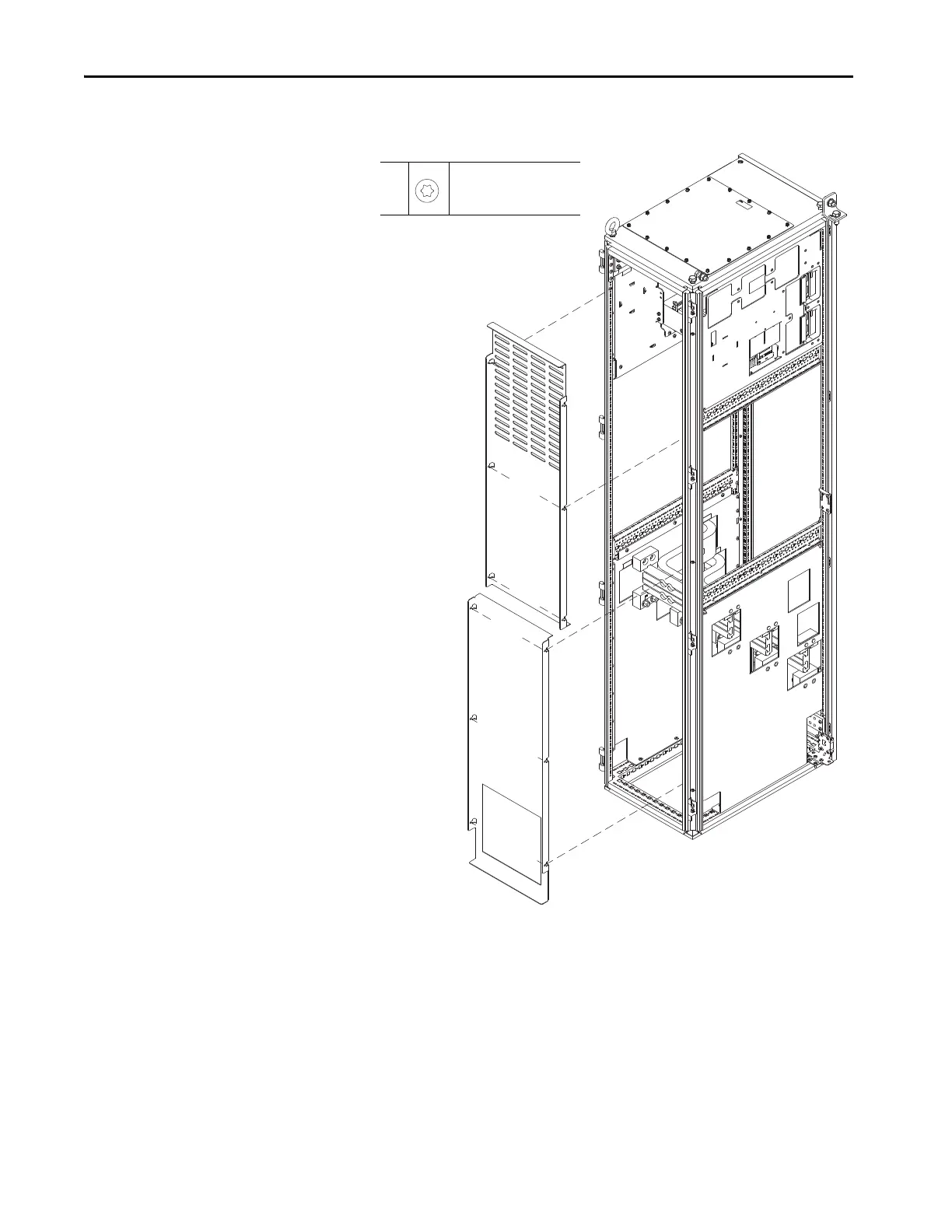

4. Loosen the 12 screws that secure the guards to the enclosure and remove

the guards.

5. Remove the two M6 x 25 mm torx screws that secure the thermal switch

assembly to the mounting bracket on the bus bar and remove the assembly.

Retain the screws, guard, and clamp for reuse.

M5.5 x 13 mm

T25

2.6 N

•m (23 lb•in)

400 mm Wide Entry/Exit Wire Bay Shown.
