Rockwell Automation Publication 750-TG100B-EN-P - June 2019 317

System Schematics Appendix A

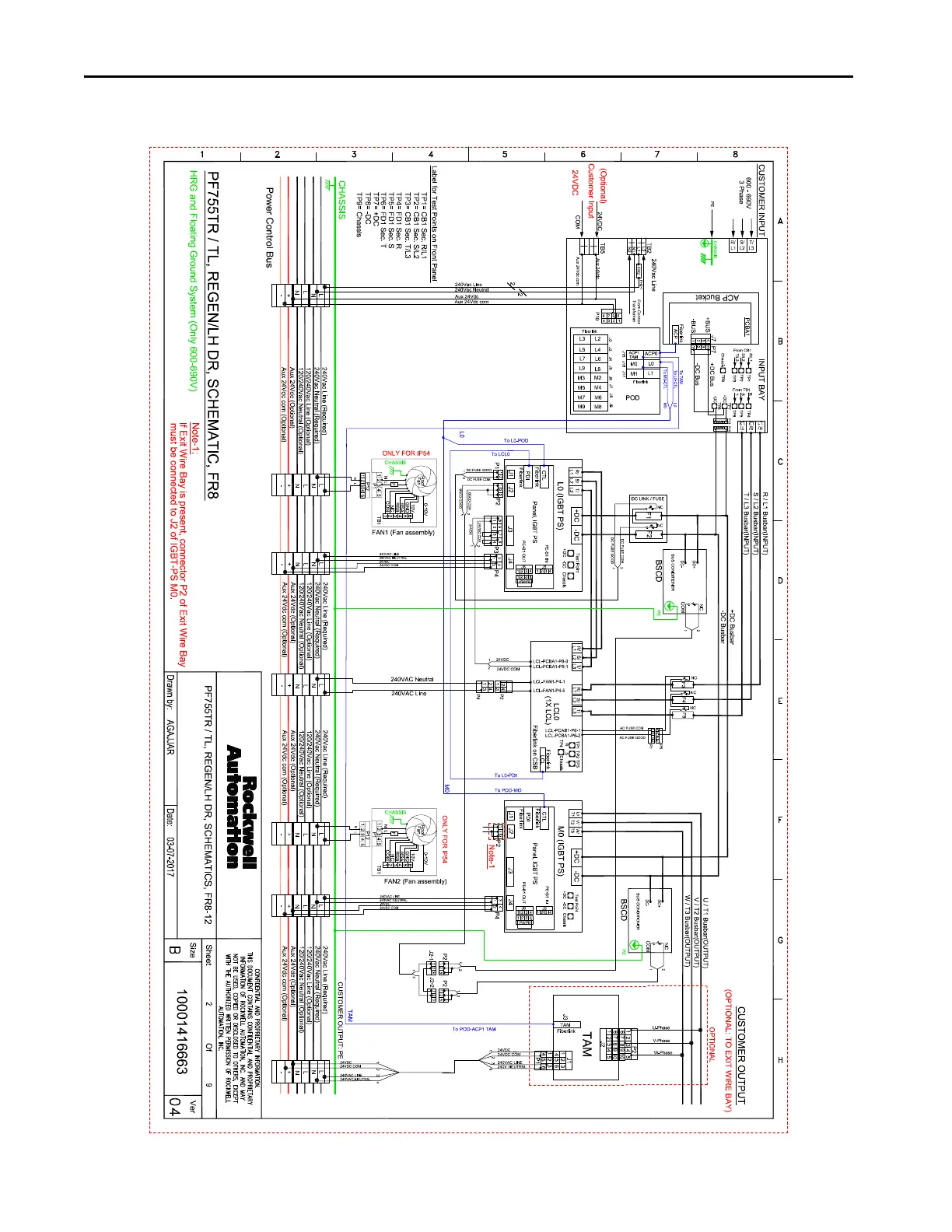

Figure 40 - PowerFlex 755TM Frame 8 Regenerative Drive with DC Bus Conditioner
