Rockwell Automation Allen-Bradley PowerFlex 750 Series

To Next Page

To Previous Page

Rockwell Automation Publication 750-TG100B-EN-P - June 2019 337

System Schematics Appendix A

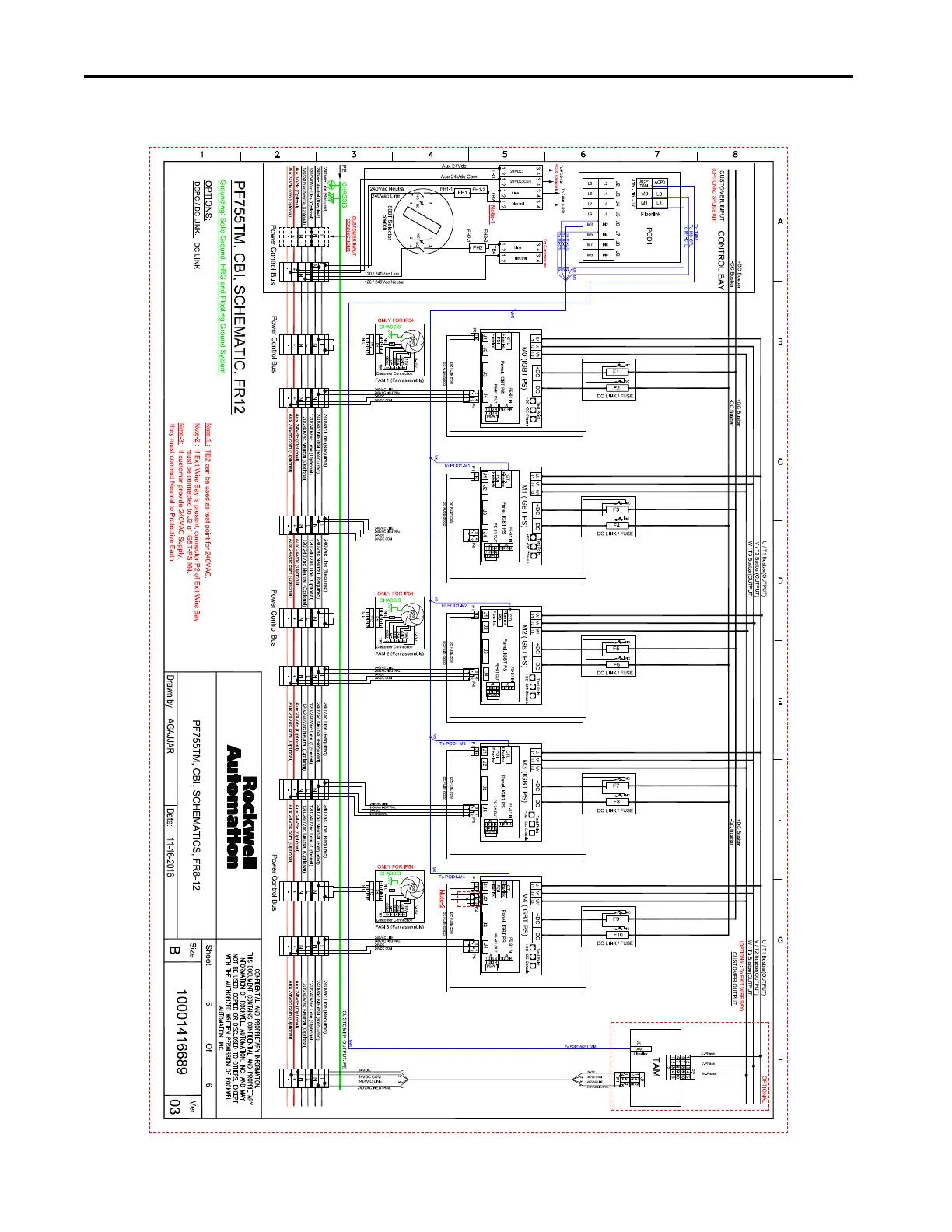

Figure 60 - PowerFlex 755TM Frame 12 Common Bus Inverter with DC Link Fuses
