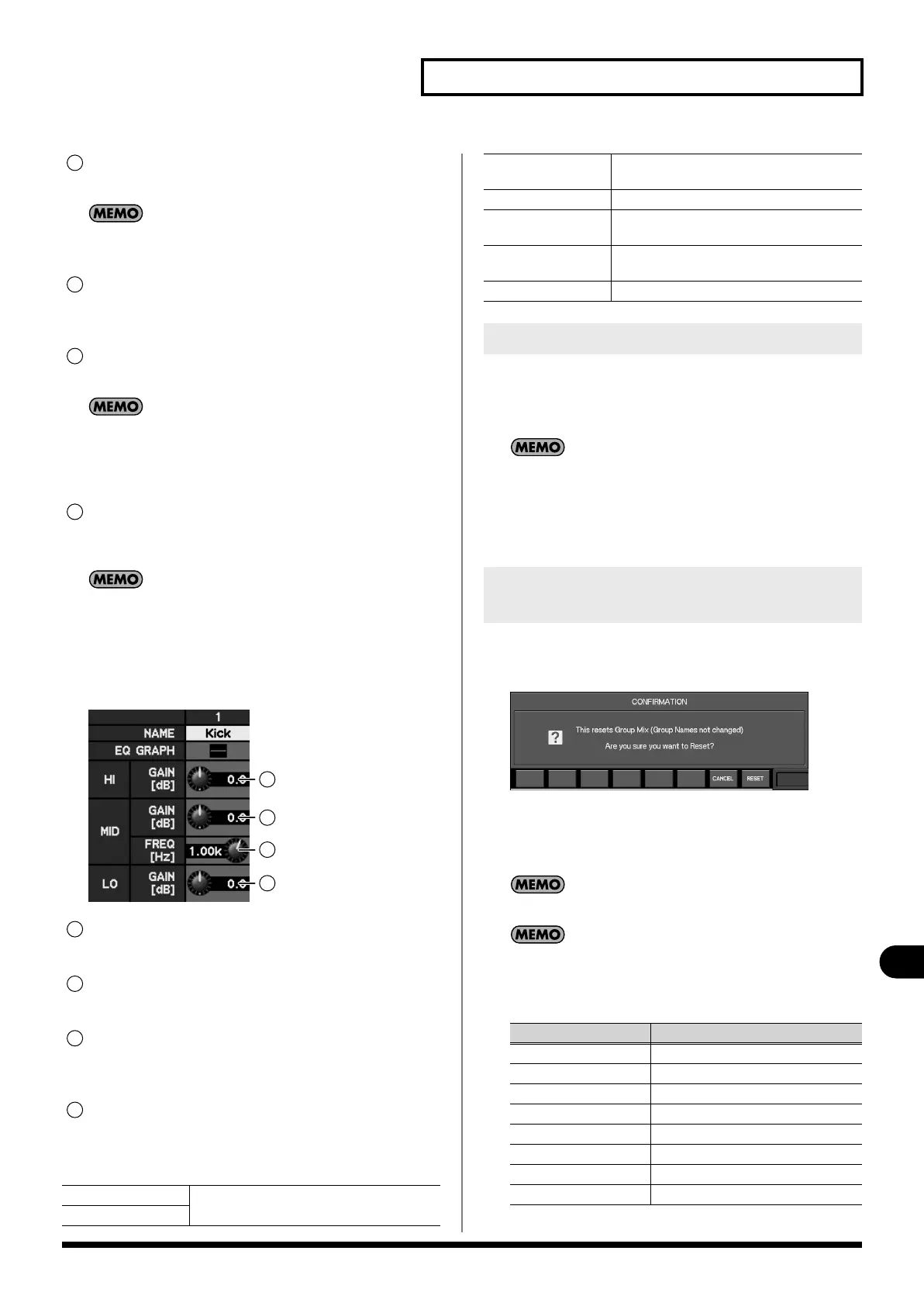

Roland M-480 - Checking and Adjusting the Group MIX

183
Management of the M-48 live personal mixer
Management of the M-48 live personal mixer
EQ graph
This indicates the approximate response of the group’s EQ.
You can move the cursor here and press [ENTER] to turn the EQ
indication on/off.
REVERB SEND knob
This adjusts the group’s reverb send in a range of -Inf dB –
+10.0 dB.
PAN knob
This adjusts the group’s pan in a range of L63–C–R63.
This pan setting is a relative adjustment to the pan specified by
the source level/pan settings. In some cases, the M-48’s source
pan may reach the maximum or minimum value before this
value reaches the maximum or minimum value.
VOLUME knob
This volume setting is a relative adjustment to the level
specified by the source level/pan settings.
In some cases, the M-48’s source level may reach the maximum
or minimum value before this value reaches the maximum or
minimum value.
The following knobs are shown if the EQ setting indication is
displayed:
fig.ScrM48GrpMix1_Elm2_Gude.eps
HI GAIN knob
This adjusts the HI gain in a range of -15.0 dB – +15.0 dB.
MID GAIN knob
This adjusts the MID gain in a range of -15.0 dB – +15.0 dB.
MID FREQ knob
This adjusts the MID center frequency in a range of 20 Hz–
20.0 kHz.
LO GAIN knob
This adjusts the LO gain in a range of -15.0 dB – +15.0 dB.
The function buttons have the following operations:
1.
Access the desired M-48 GROUP MIX popup.
2. Use [F1 (LAYER 1–8)] or [F2 (LAYER 9–16)] to choose the
group you want to view, and note the group mix settings.
Turning [F3 (EDIT EQ)] on will switch to the EQ setting
indication, allowing you to view the EQ values.
3.
If necessary, move the cursor to a parameter and use the
value dial to edit the value.
1.
Access the desired M-48 GROUP MIX popup.
2.
Press [F7 (RESET)].
fig.ScrM48GrpMixClr_Conf.eps
A message will ask you to confirm the operation.
3.
Press [F8 (RESET)]; the group mix will be reset to the
default settings.
Pressing [F7 (CANCEL)] will cancel the operation.
This operation will not change the group names.
The parameters of each group will be set to the following
values:
[F1 (LAYER 1–8)]
Switches the group layer.
[F2 (LAYER 9–16)]
4
5
6
7
8
9
10
11
8
9
10
11
[F3 (EDIT EQ)]
Turning this on will switch to the EQ setting
display.
[F5 (REVERB ON)] Turns the reverb on/off.
[F6 (SOLO CLEAR)] Clears solo settings for all groups. This will be
on if any groups are soloed.
[F7 (RESET)] Returns the group mix to the default state (p.
183).
[F8 (CLOSE)] Closes the popup.
Checking and adjusting the group mix
Resetting the group mix to the default
settings
Parameter
Value
VOLUME
0.0 dB
PAN C
REVERB SEND -Inf dB
HI GAIN 0.0 dB
MID GAIN 0.0 dB
MID FREQ 1.00 kHz
LO GAIN 0.0 dB
SOLO OFF
