7.4.3 Check and replace gas spring: Safety guards
This process must be performed for the infeed and outfeed safety
guards individually.
Interval Servicing work
Monthly Visual inspection to determine if oil spots are present.
Monthly Check the functioning of the gas springs. The function is
correct if the safety guard closes (a) or opens (c) at a
certain distance from the table with the pressure from the
gas spring (see table below).

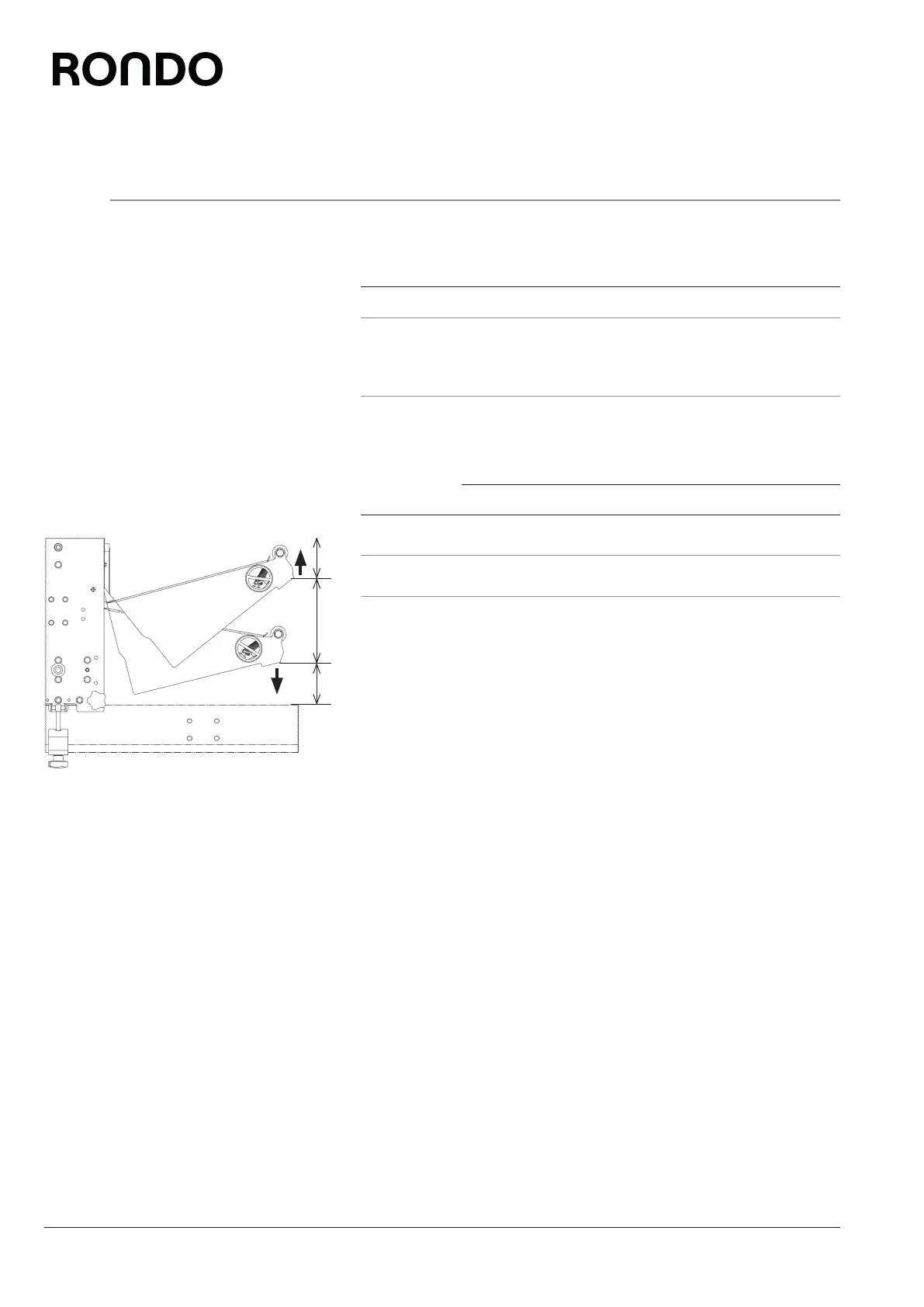

Safety guards
Distance from the table at which the safety guard closes
(a), or opens (c) by the gas spring pressure. At the
distance (b) the safety guard moves easily in both
directions.
(a) (b) (c)
Infeed
Outfeed
150 mm 150 – 200 mm > 200 mm
Cutomat
[SSH67***C.*]
210 mm 210 – 300 mm > 300 mm
1. Position the scale.
2. Lift the safety guard.
The safety guard must close at distance (a), and open at
distance (c).
3. Close the safety guard.
4. Replace the gas springs if necessary.
a
b
c
