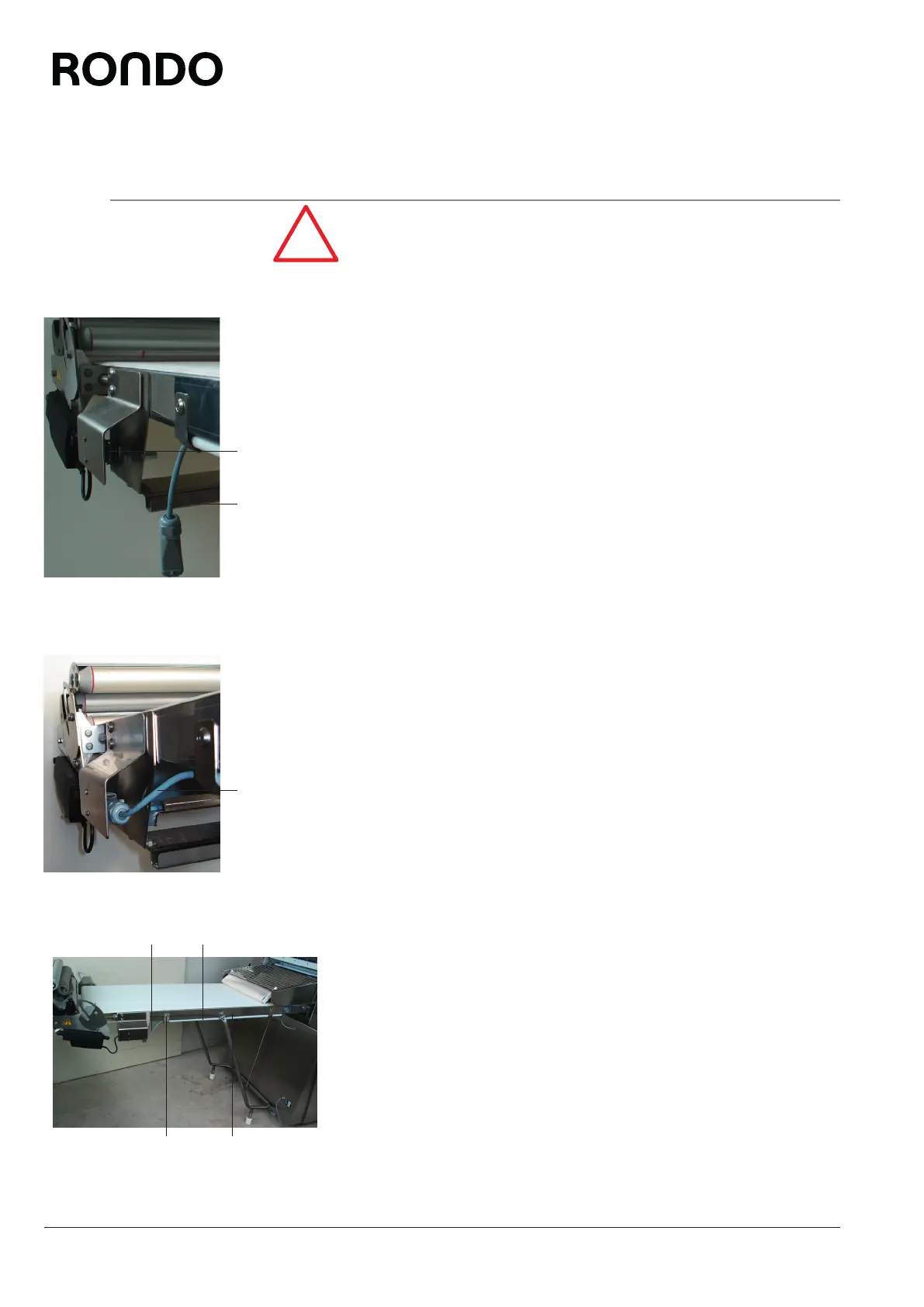

2.5.13 Mounting the automatic reeling device [SSH67* 7H*.*]
The automatic reeling device is started automatically by the electrical
control. Handle with care! Do not reach into the stationary or running
device!
1. Connect the connecting cable (2) for the automatic reeling device
to the plug (1) of the Linak motor.
2. Check: Is the connecting cable (2) correctly connected to the
Linak motor?
3. Fix the connecting cable (2) with the plastic tube (3) and screws
(4) to the machine table (5).
