Transporting, setting up, connecting, dismounting and storing the device
Edition BE210202
03.2022
Rondostar 5000
Operating manual
36
2.5 Setting up the machine
All assembly and disassembly work must be carried out by three peo-
ple.
The machine must be set up on a level, even floor surface. Inclinations
> 10° are not permitted. The machine must be locked during operation.

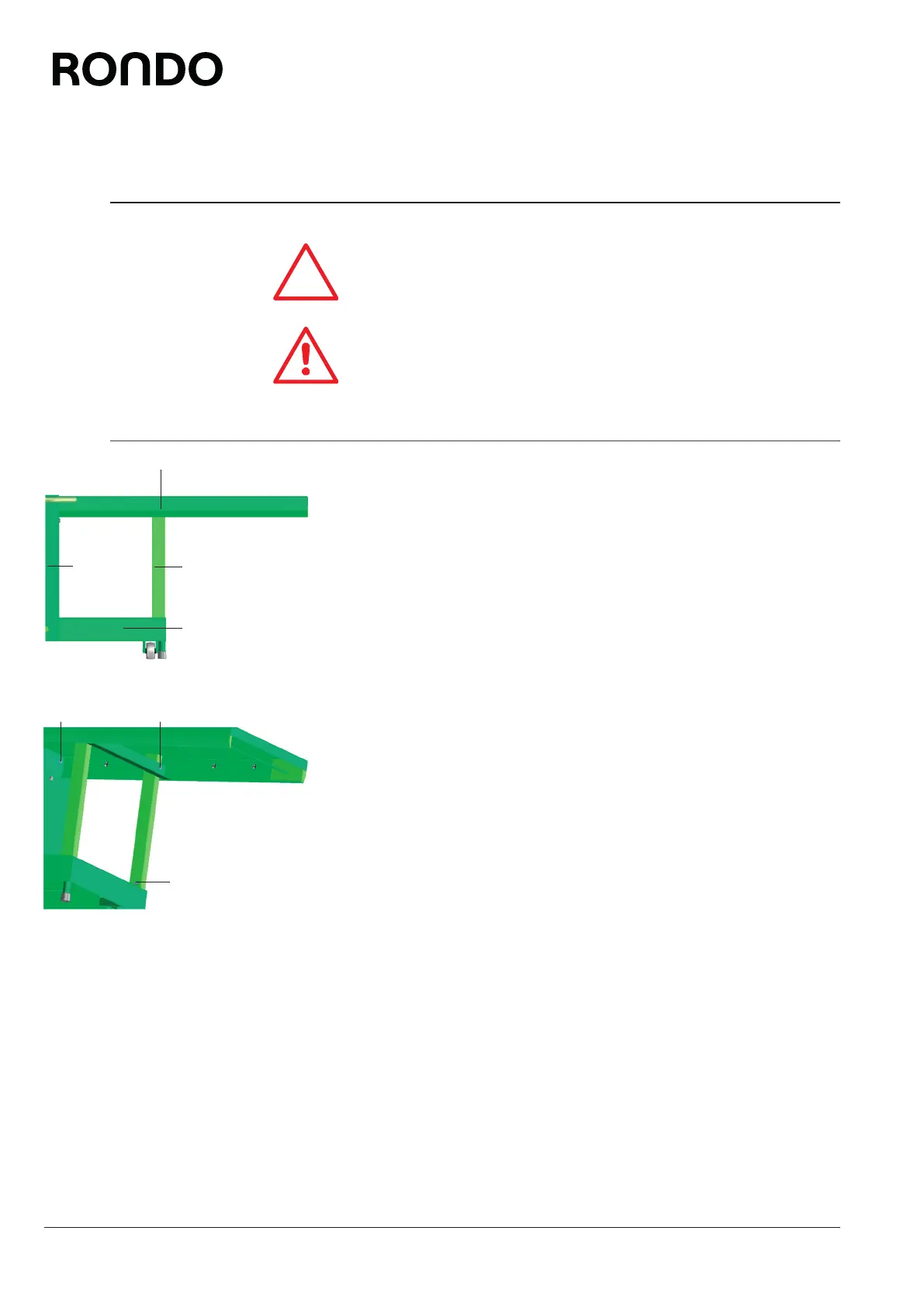

2.5.1 Mounting the undertables [SSH673***.*]
• Place the undertables (1) on the substructure (4) and on table
supports (2).
• Mount the undertables on the substructure using two hexagon
screws (2B) each.
• Mount the undertables on the table supports using three screws
(2C) each.
• Do not tighten screws (2A/B/C) yet!
• Align the undertable.
• Tighten all screws for the following connections:
• Substructure - Undertables
• Undertables - Table supports
• Table supports - Beams (3)
28
1
3
4 2
2A
2B
2C
