2.5.4 Mounting the table supports [SSH670**.*, SSH672***.*]

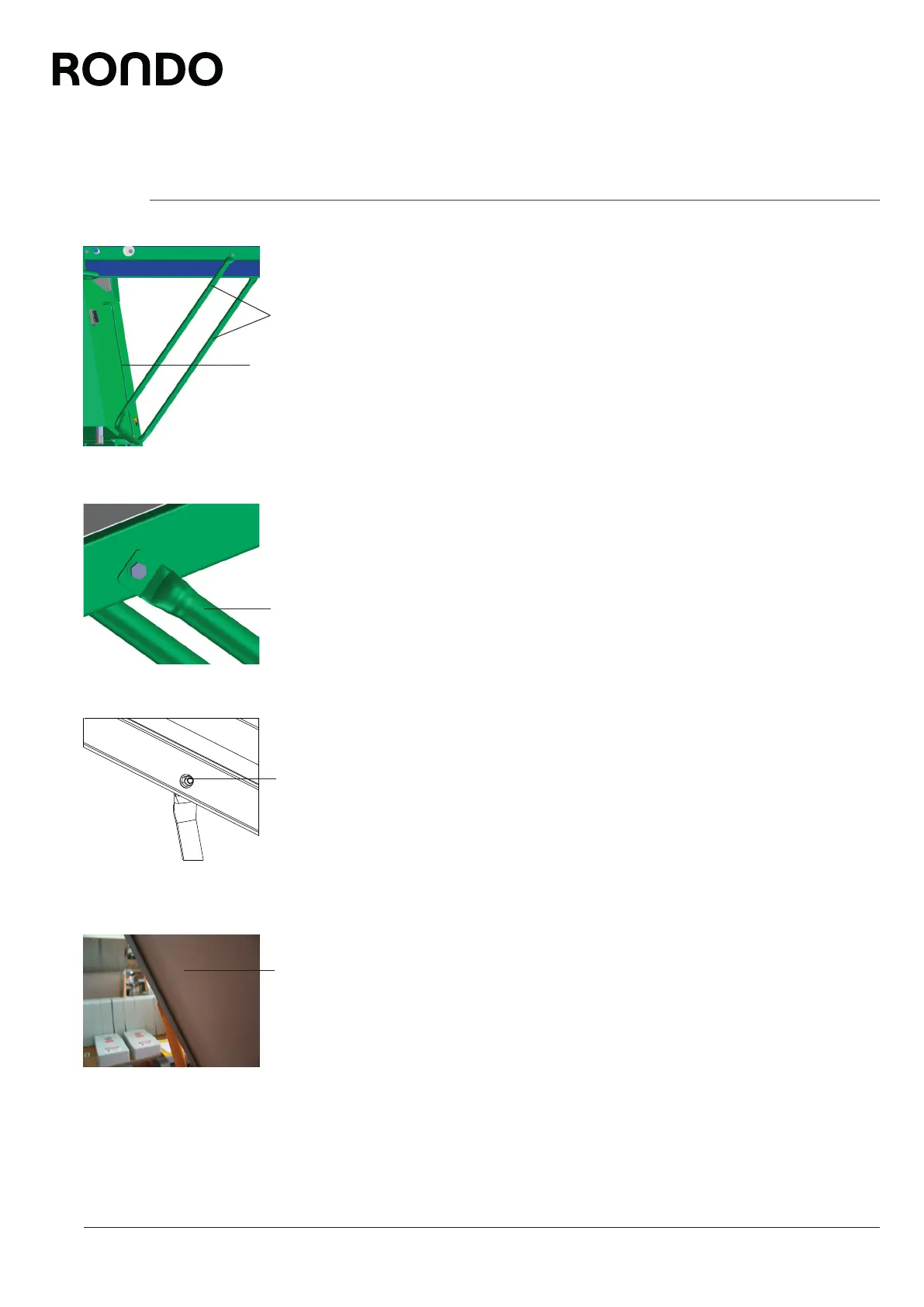

1. Insert the table support (1) into the guideway rail (2).
2. Fix the table support (2) with the hexagon screws.
3. Attach the second washer on both inner sides,
then screw on the locking nut (3).
Please note, the conveyor belt must be positioned under
the locking nut again.
