Rondo Rondostar 5000 Basic - Mounting Gas Springs: Rigid Substructure [SSH673***.*]

Transporting, setting up, connecting, dismounting and storing the device
Edition BE210202
03.2022
Rondostar 5000
Operating manual
38
7. Fold down the table bolt (7) (this is designed to prevent uninten-
tional disengagement of the table).
A: Position for fitting/removal
B Position for operation

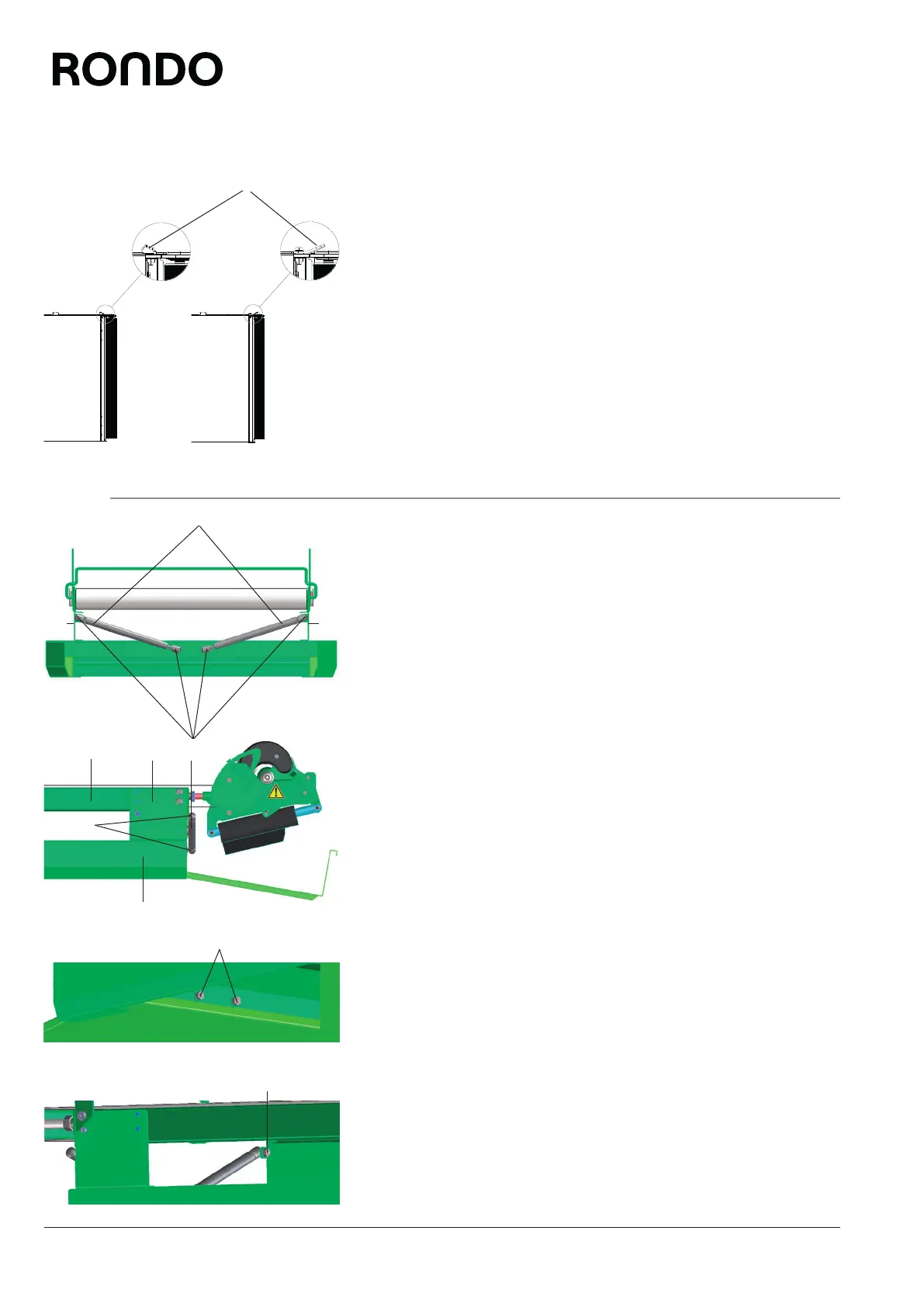

2.5.3 Mounting gas springs: rigid substructure [SSH673***.*]
Machine table with automatic reeling device:
• Fit 200 N gas springs.
Machine table without automatic reeling device:
• Fit 100 N gas springs.
1. Mount gas springs with locking washers and hexagon nuts (3) on
the undertable (4) and on guide plates (2).
Pos. A 7 Pos. B
1
22
3
3
3
12
3
4
5
