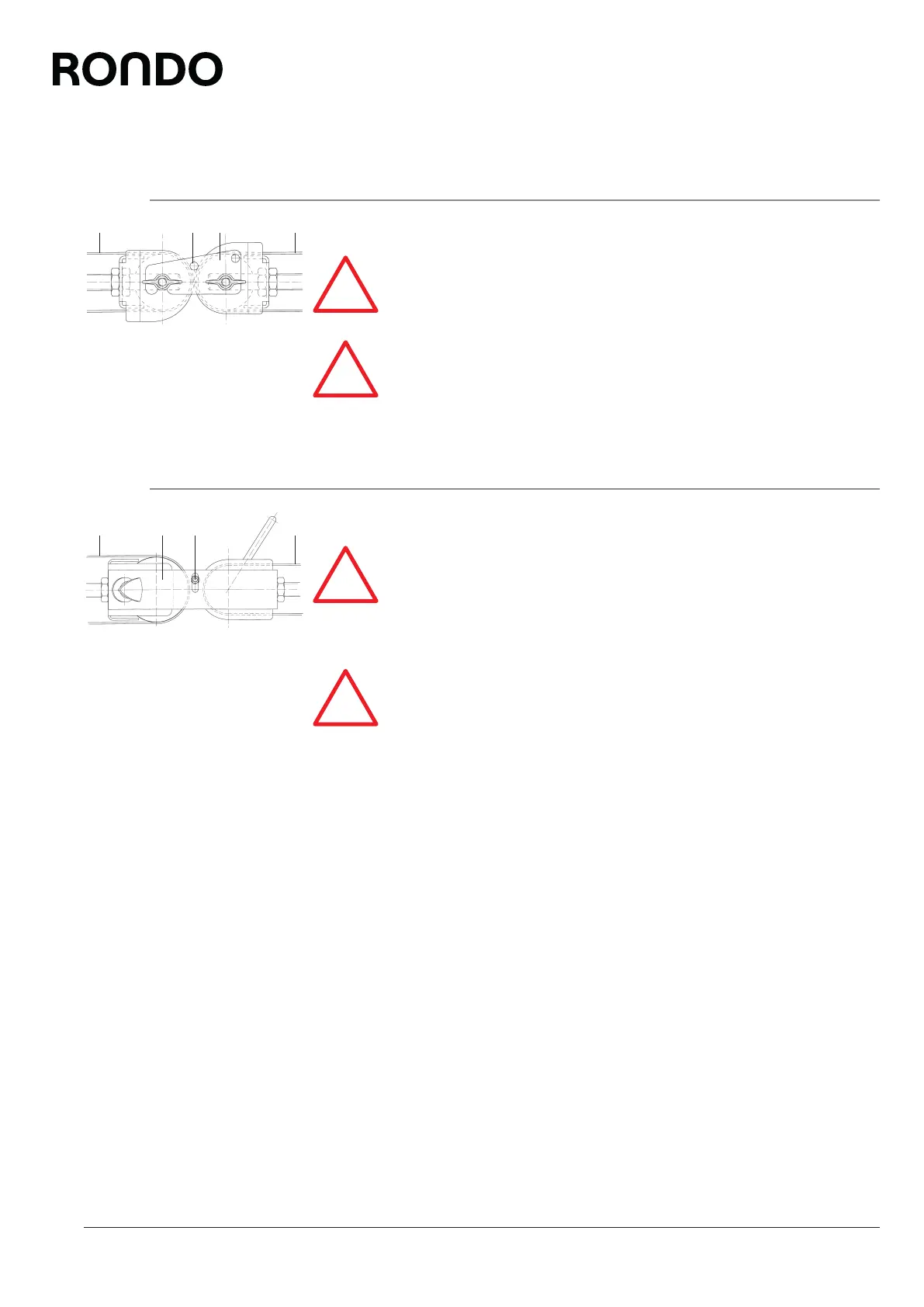

2.5.14 Interconnected operation with PTT150/PTT250 transfer table
The Rondostar and transfer table must be firmly connected with the
joining plate (3).
The distance between the protection bar (2) and the belts (1) must not
exceed 3 mm.
Interconnected operation without a correctly installed protection bar is
prohibited.
2.5.15 Interconnected operation with make-up line/donut line
The Rondostar and make-up line must be firmly connected with the
joining plate (4).
The distance between the protection bar (2) and the belts (1) must not
exceed 3 mm.
Interconnected operation without a correctly installed protection bar is
prohibited.
Transfer-
table
Rondostar
1 2
3 1
10
11
RondostarMake-up
line/
donut line
1 4 2 1
10
11
