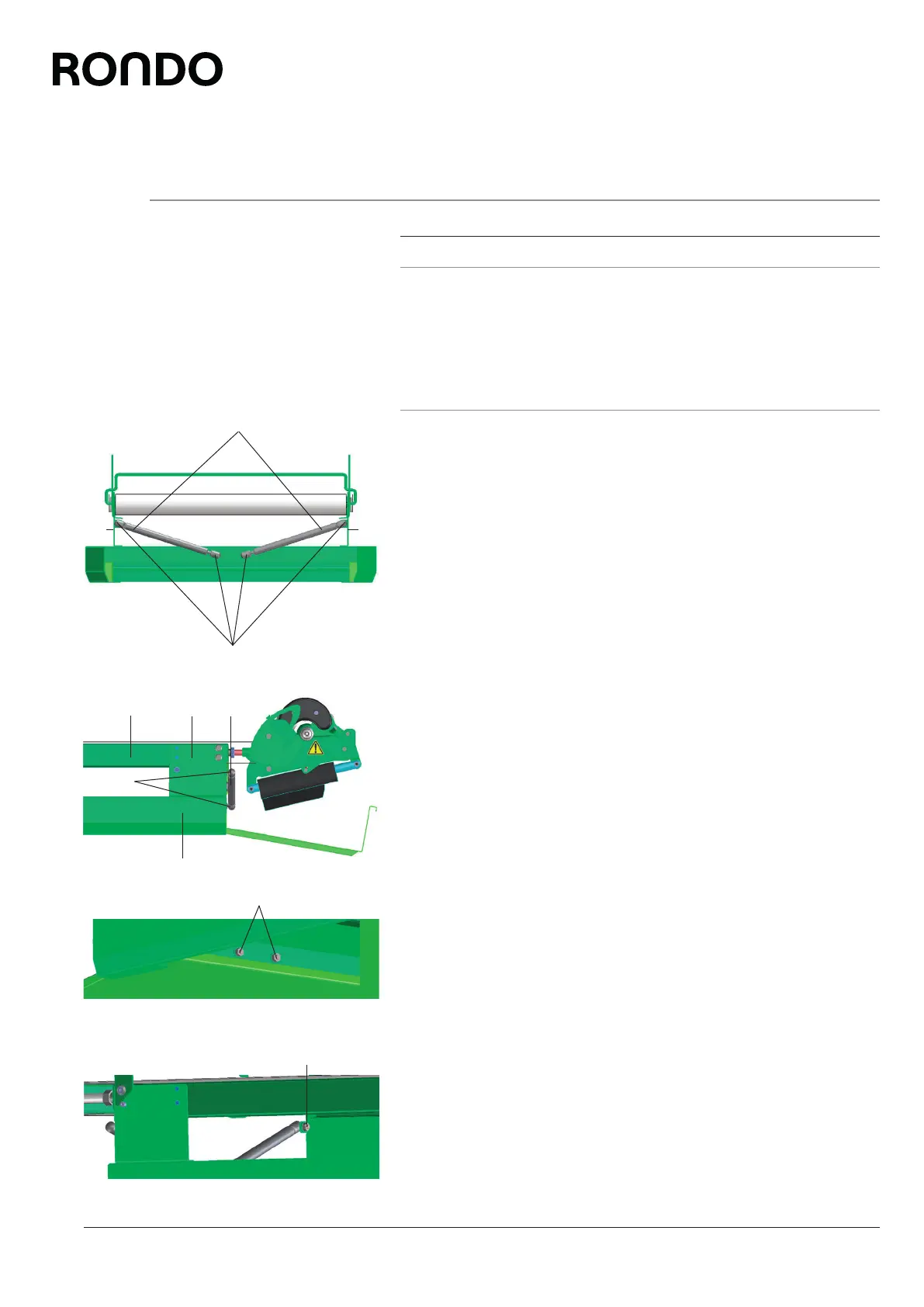

7.4.4 Checking and replacing the gas springs: rigid substructure [SSH673***.*]
Interval Servicing work
Monthly Visual inspection to determine if oil spots are present.
Monthly Check the functioning of the gas springs. The function is
correct when…
- the machine table (5) is held in position with the gas
springs (1) fully extended.
- after deliberately overcoming the self-locking mechanism
manually, it is placed on the undertable (4) at a gentle
speed. Injuries caused by crushing hands between the
undertable and the guide plates (2) must be avoided.
Machine table with automatic reeling device:
• Fit 200 N gas springs.
Machine table without automatic reeling device:
• Fit 100 N gas springs.
1. Check gas springs.
2. Replace gas springs if necessary:
Mount gas springs with locking washers and hexagon nuts (3) on
the undertable (4) and on guide plates (2).
1
22
3
3
3
12
3
4
5
