User Manual Roth EnergyLogic Touchline/Wireless
Accessories
P100011294 E 105
13 Accessories
13.1 External antenna
To improve the transmission of a wireless connection module, e.g. when the
wireless connection module is installed in a metal cabinet, an external anten-
na can be installed. See page 23, Fig. 5.
The external does not require any external power supply. It is provided via the
included communication cable from the wireless connection module. A com-
munication cable with a length of five meters and an RJ12 plug on either end
is included in the delivery.
B12260

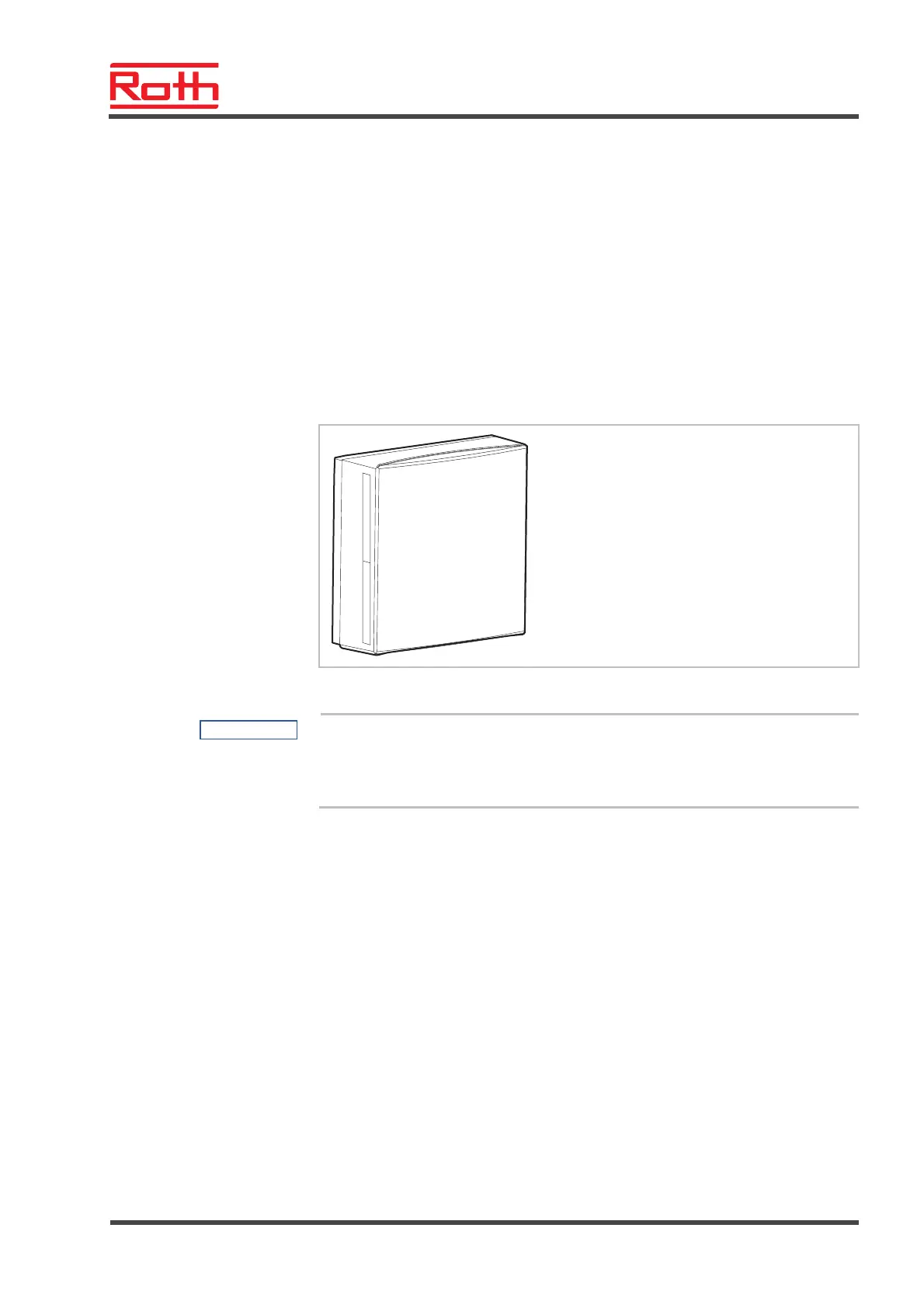

Fig. 46: External antenna
NOTE
The external antenna does not require any addressing. Once the antenna
is connected to the wireless connection module via the mains cable, the
internal antenna of the wireless connection module is deactivated and the
external antenna assumes the function.
