User Manual Roth EnergyLogic Touchline/Wireless
Plant examples and communication
124 P100011294 E
16.2 Plant examples with up to five wireless connection modules
Slave
C
Slave
Master
B
A
B12299a
CH 1
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
8 97
P-46 P-46 P-46 P-46
6
CH 1
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
54
SENS
SENS
3
CH 1
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
21

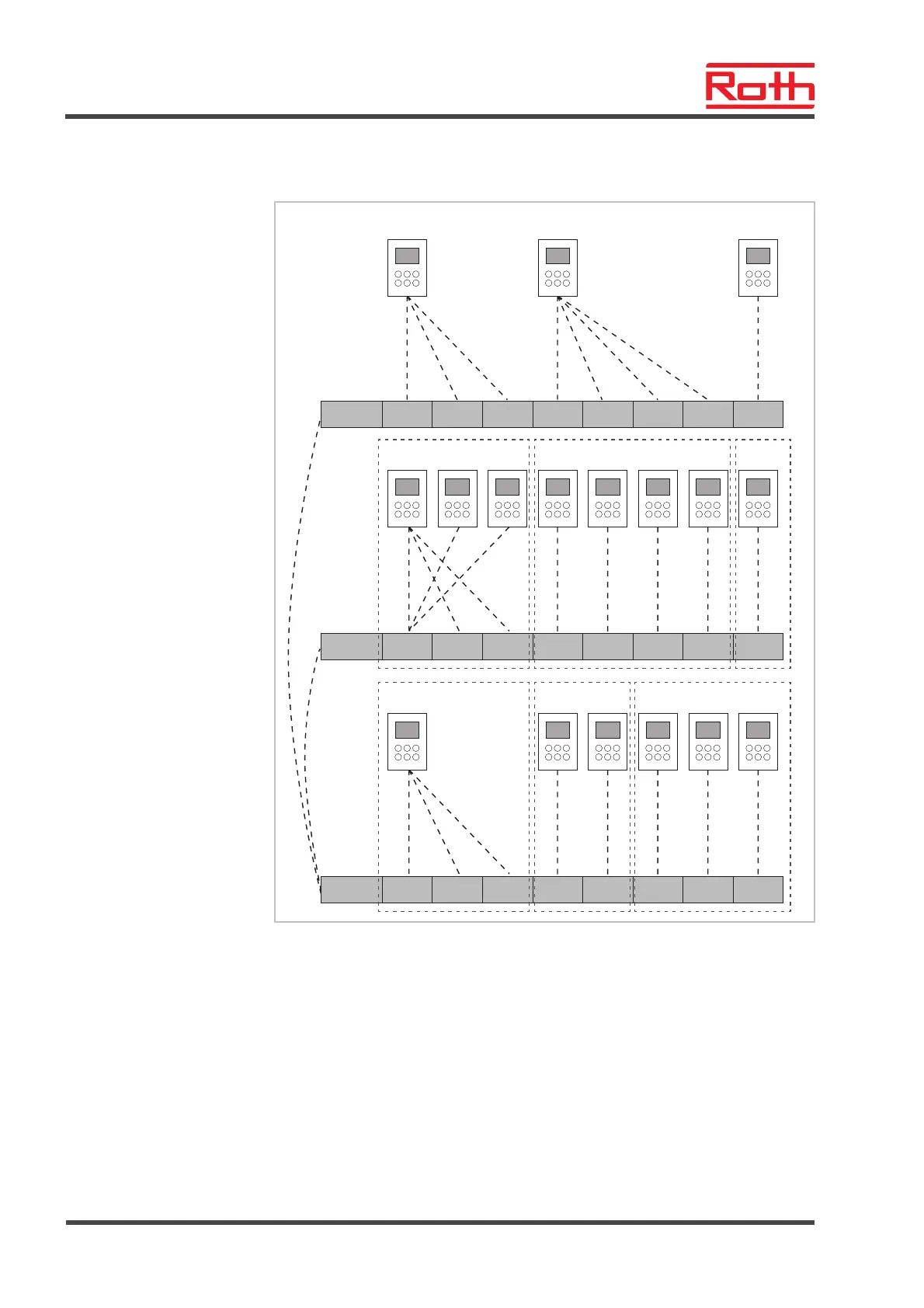

Fig. 64: Example with three wireless connection modules
A
Basement
1 Zone 1, basement
2 Zone 2, basement
3 Single addressing
B 1. Floor
4 Zone 1 with average temp. building
5 Zone 2 with setpoint sharing
6 Zone 3
C 2. Floor
7 Radio channel group 1
8 Radio channel group 2
9 Single addressing
CH 1…CH 8: radio-channels
